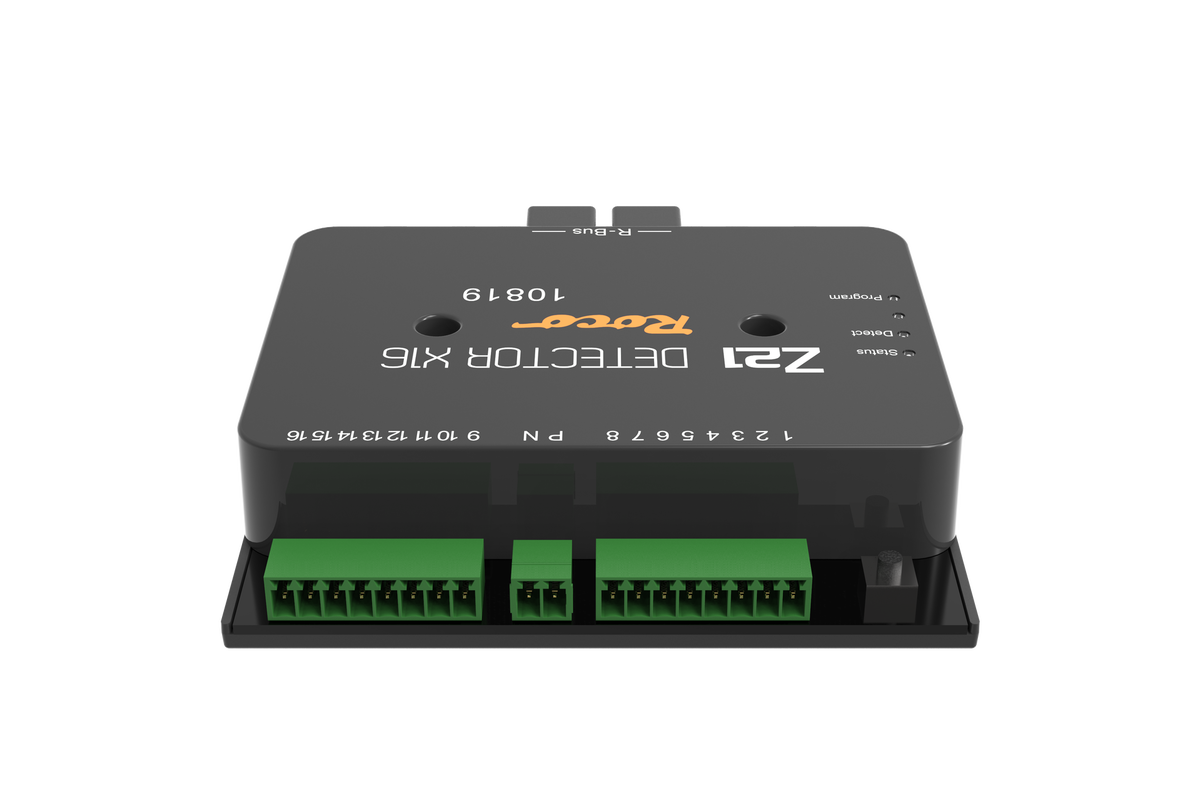

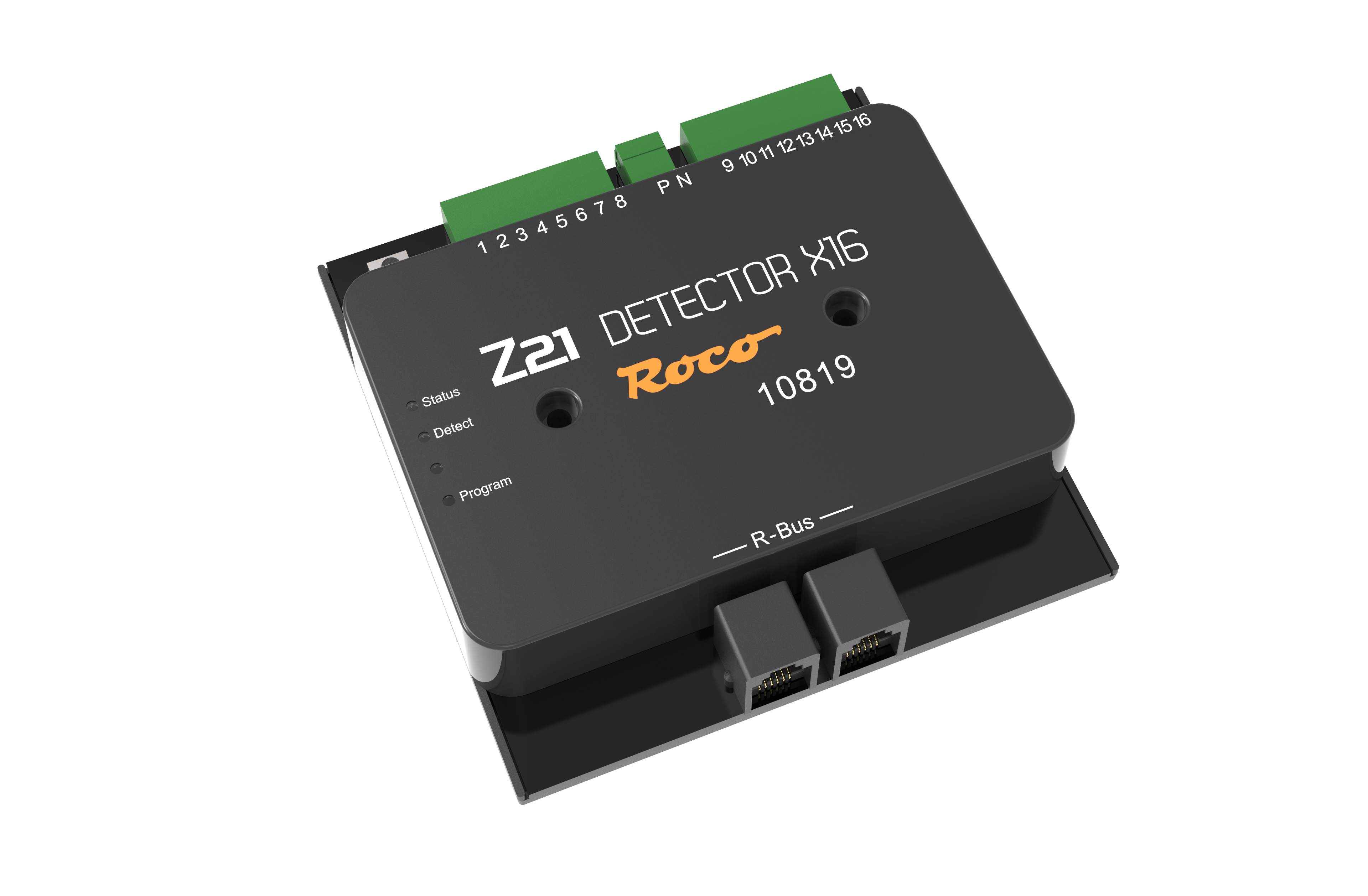

Z21 DETECTOR X16

10819 - Z21 DETECTOR X16

  • Track feedback module for 16 sections
  • Feedback message via current monitoring of track sections
  • Connection via R-Bus
  • Configuration via buttons and POM CV programming

Technical data

Technical details

Input voltage
12-24V DCC or MM
Input current
3 A max.
Internal R-BUS consumption
0,40 W
Internal track input consumption
0,96 W
Output per channel
3 A
Digital system
DCC and/or Motorola
Occupied message
16 x per current measurement
Dimensions L x W x H
104 mm x 104 mm x 25 mm
