ACCESSORIES

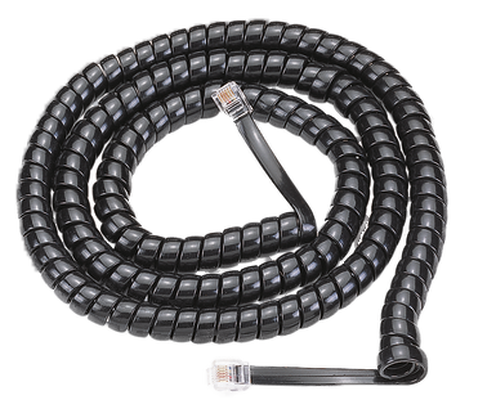

10754 - 6-pole spiral cable
Connection between Z21 multiMAUS and Z21, z21start, smart RAIL.
Length: approx. 2 metres

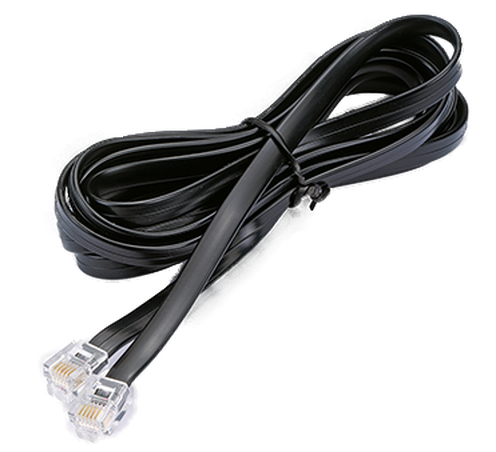

10756 - Data bus cable, 6-pole
Replacement cable for Z21 multiMAUS, Lokmaus (10760, 10792), turnout keyboard (10770) or RouteControl (10772).
Length: approx. 2 metres

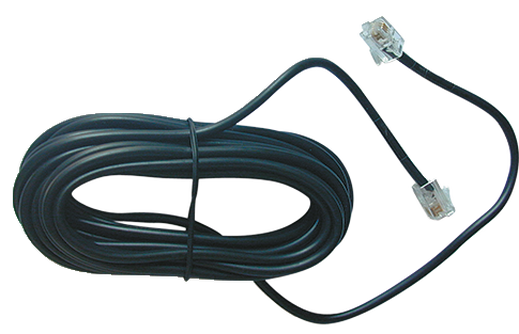

10757 - Booster extension cable
B-BUS Replacement cable for connecting boosters with control centres (, Z21 light BOOSTER, Z21 single Booster, Z21 dual Booster, CDE Booster Adapter)
Length: approx. 2 metres

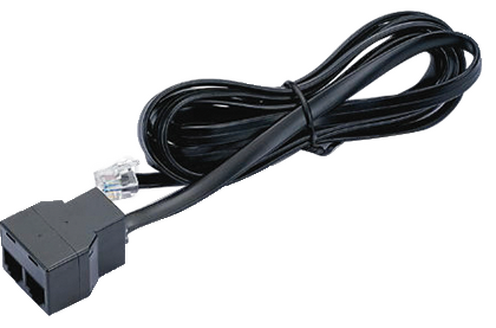

10758 - Data bus distributor module, 4-pole

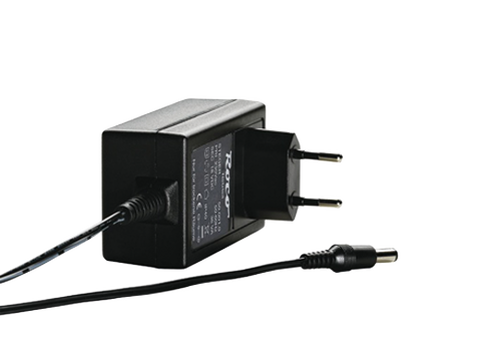

10850 - Switching power supply
Power supply for the z21, z21start and the Z21 CAN HUB.
■ Overload protection
■ Short circuit-proof
■ Feed-in protection
Technical details
Input voltage
230 V ~
Output voltage
18 V =
Output power
36 W

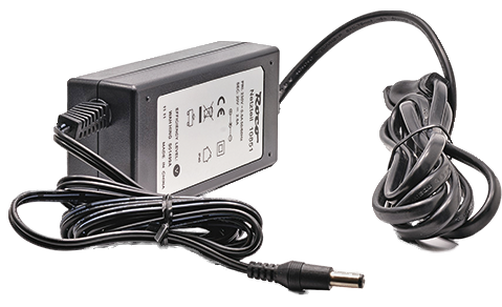

10851 - Switching power supply
Power supply for the Z21, z21start, Z21 single BOOSTER, Z21 light BOOSTER and the
multiZENTRALEpro (10832).
■ Overload protection
■ Short circuit-proof
■ Feed-in protection
Technical details
Input voltage
230 V ~
Output voltage
20 V =
Output power
54 W

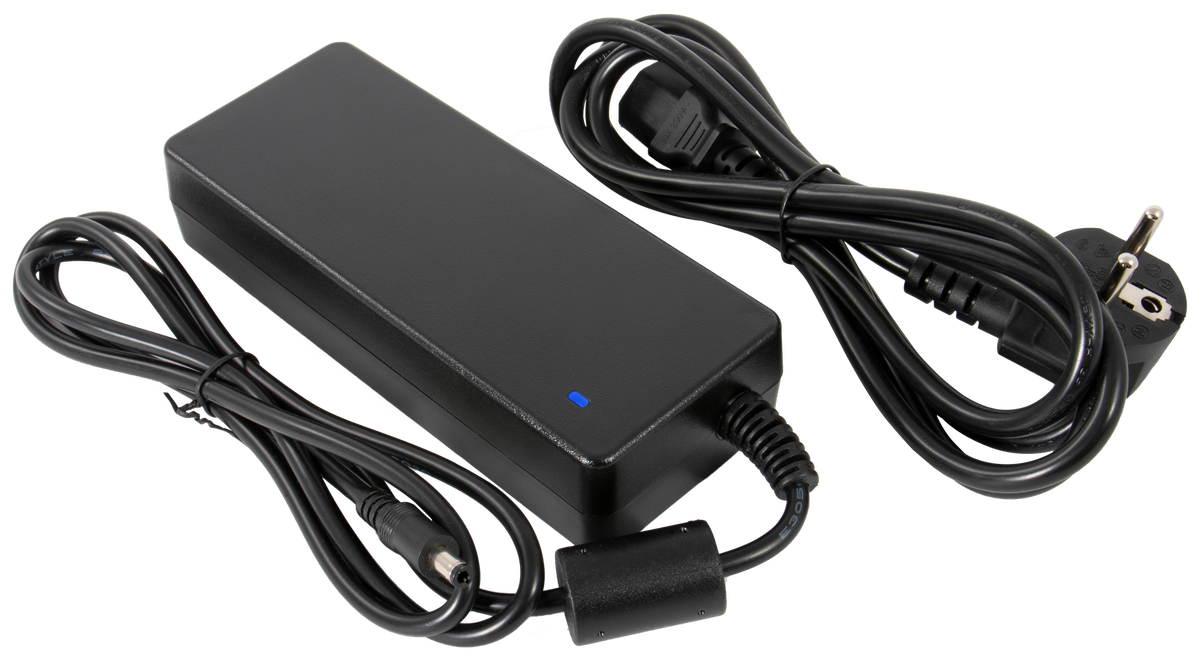

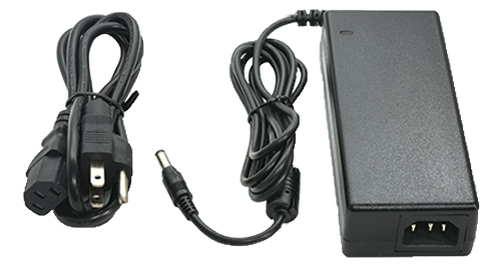

10857 - Switching power supply 120 W
For the power supply to Z21 dual Boosters.
Protection against:
■ Overload
■ Short-circuit
■ Overvoltag
■ Overtemperature
Technical details
Input voltage
100-240 V ~
Output voltage
20 V =
Output current
6 A

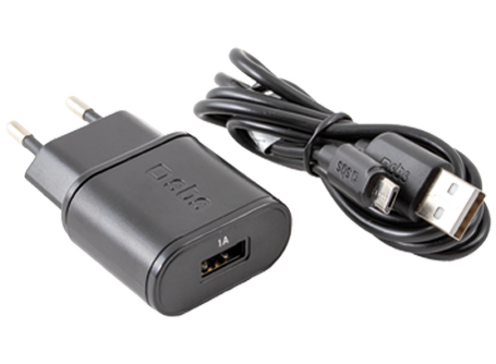

10859 - USB switching power supply 5 W
USB switching switching power supply 5 W
With 1 m USB-A on micro USB-B cable
For the power supply to Z21 pro LINK
Technical details
Input voltage
100–240 VAC 50/60 Hz
Output voltage
5 VDC
Output current
1 A

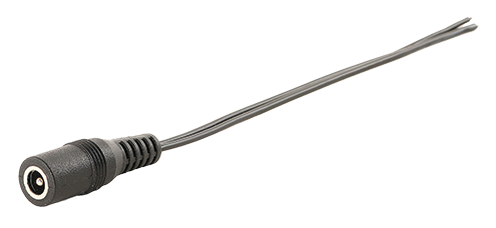

10749 - DC power check adapter
This adapter enables the Z21 switch DECODER (10836) or the Z21 signal DECODER (10837) to be easily supplied with a switching power supply such as the 10851 or the 10850.
Technical details
Length
200 mm
Wire
AWG 18
Current rating
6 A
Working voltage
24 VAC VDC
