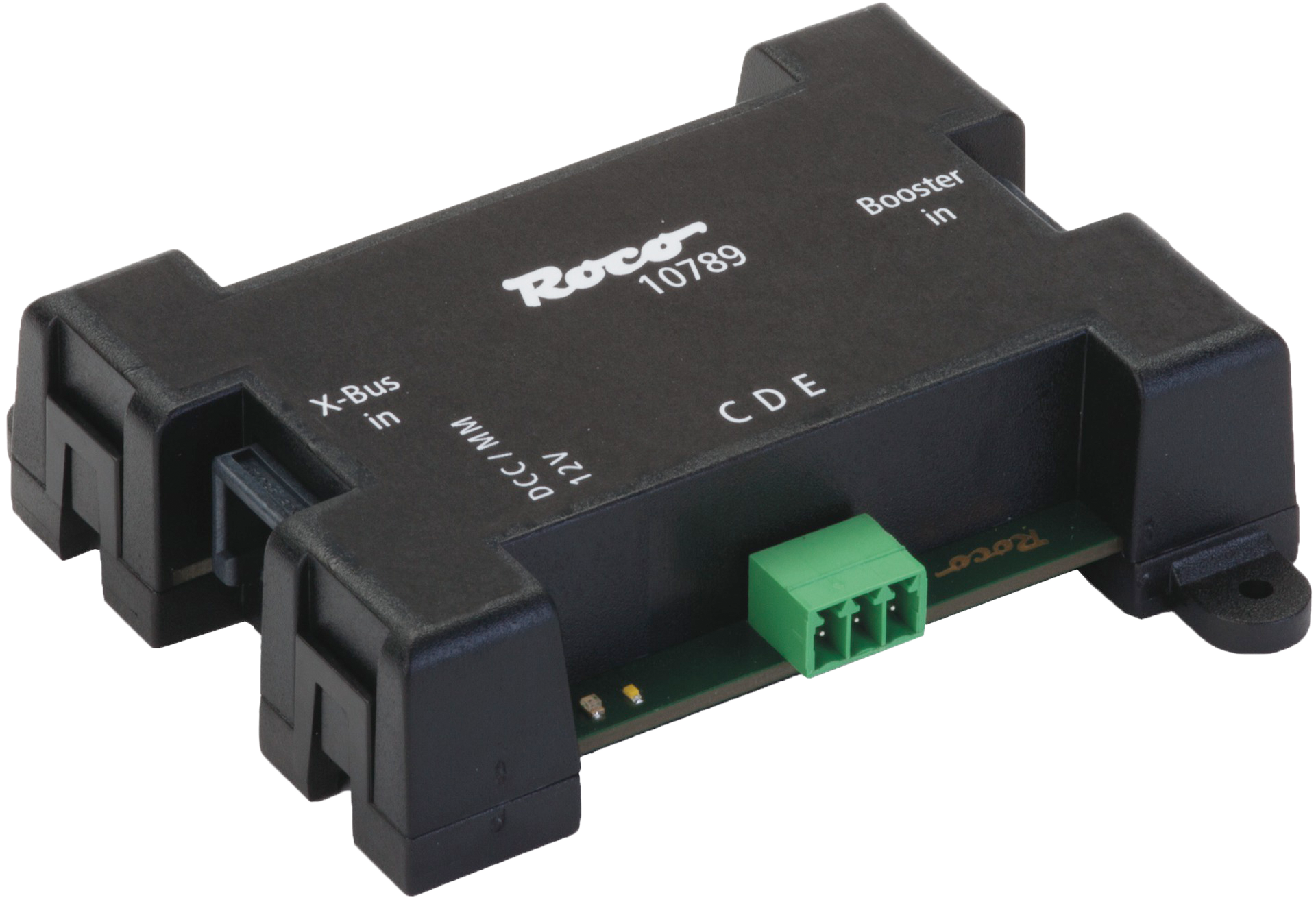

10789 - CDE Adapter

10789 - Z21® Booster Adapter

The Booster Adapter is used to facilitate connection of up to 15 Boosters with CDE ports to the Boosterbus. To supply the adapter with voltage, there is an X-BUS connection. Status LEDs display the 12 V supply as well as an active CDE output stage, and the adapter also has overcurrent and short circuit shut-down protection on the CDE output.

The Booster Adapter can be used on the following control centres and boosters:

Z21® (10820, 10822)
z21®start
■ Digital booster (10764)
■ multiZENTRALE Pro (10832)

Included:
■ CDE adapter
■ X-Bus cable
■ User Guide
