Z21 XL Series

Die beliebte Z21 jetzt auch für große Spuren

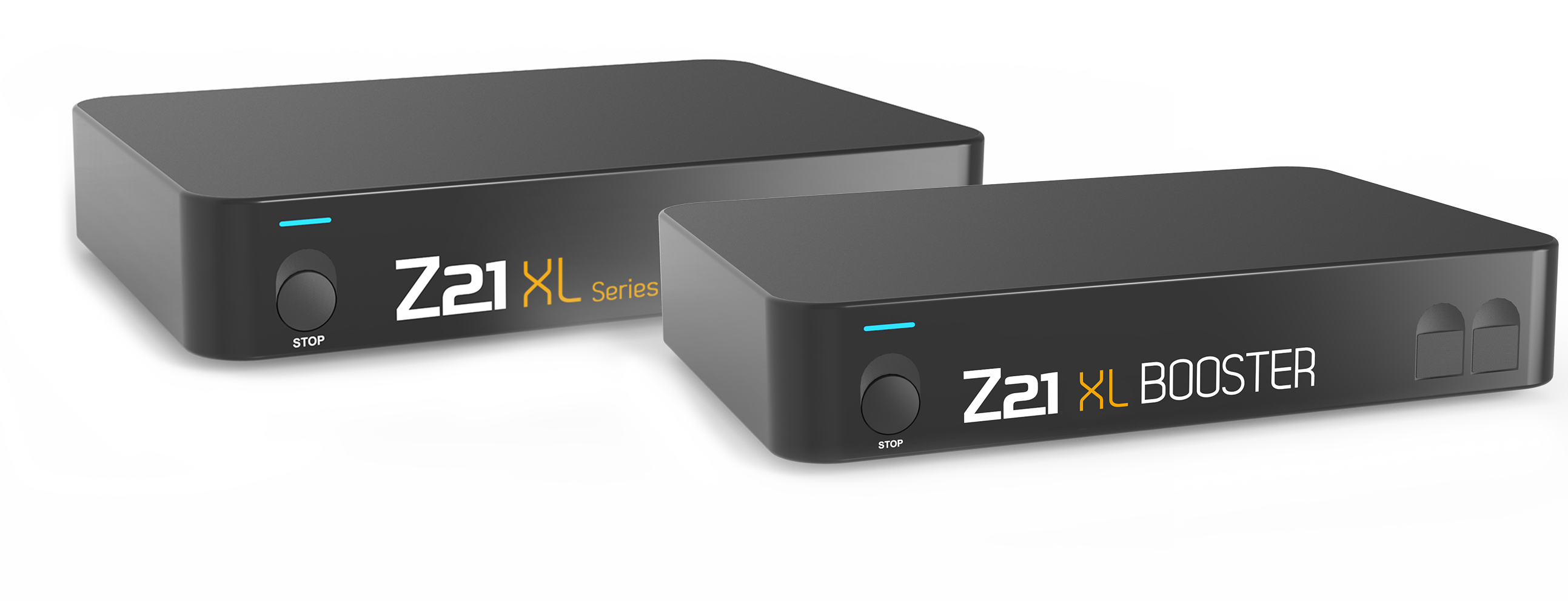

Z21 XL Series

The latest Z21 XL series has been especially designed for the needs of large tracks (0, 1, 2/G) and combines the benefits and comfort of the Z21 system with a high output of 6 ampere.

Due to the high-performance output and the adjusted shutdown, the Z21 XL series is perfectly designed for the needs of large rails. The high currents not only withstand large model mechanics and robust track materials, but require them.



Compatible with XL Series

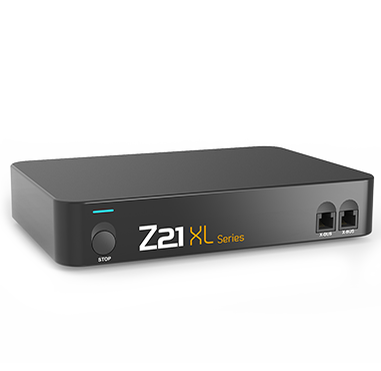

Z21 XL Series digital command station 10870

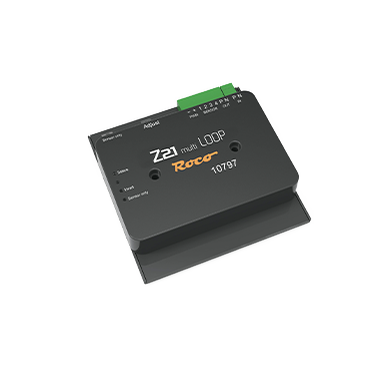

Z21 multi LOOP 10797

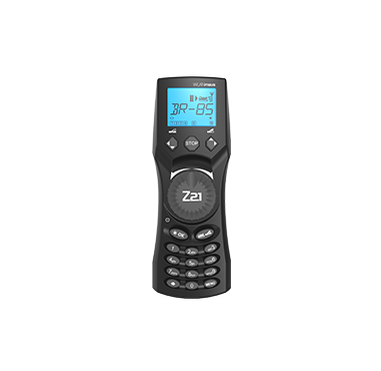

Z21 ᴡʟᴀɴMAUS 10813

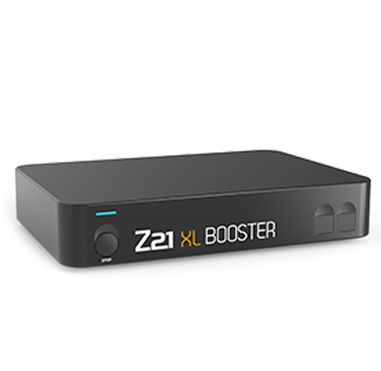

Z21 XL BOOSTER 10869

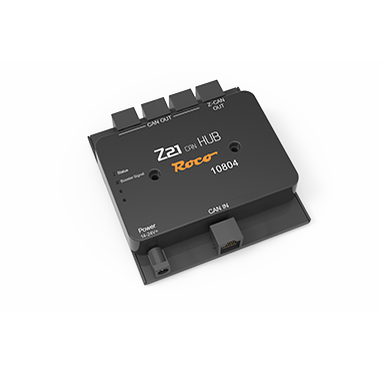

Z21 CAN HUB 10804

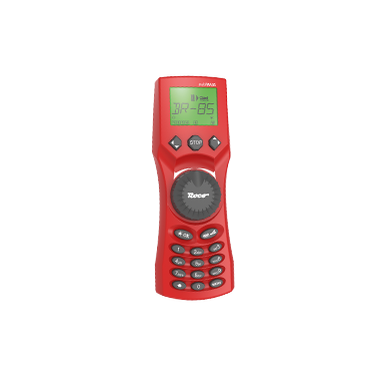

Z21 multiMAUS 10810

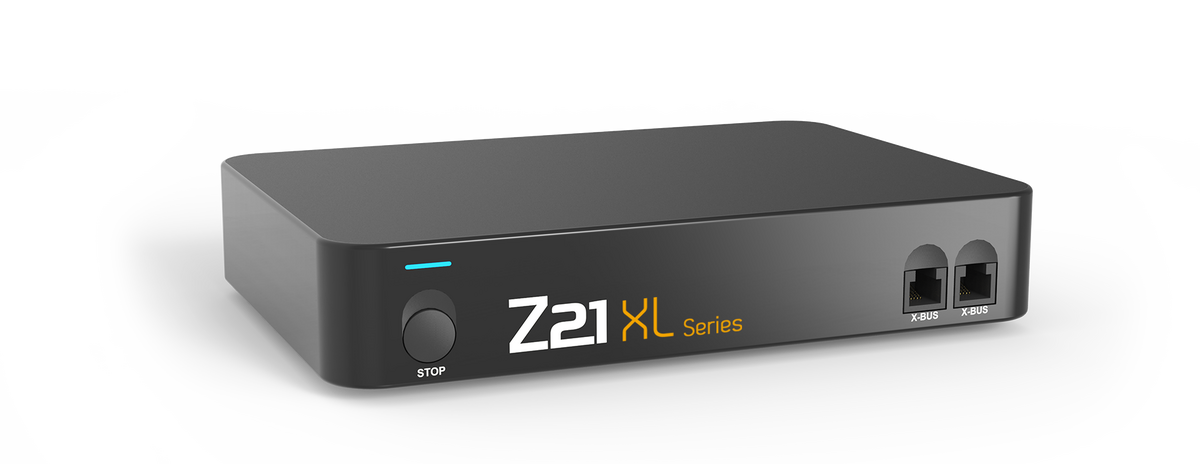

10870 - Z21 XL Serie

The Z21 XL Series offers the same functions as the normal Z21. However it differs due to its 6 A main track power.

All benefits at a glance:

  • More output with 6 A 20 V
  • WiFi management offers good reach and transfer safety
  • Convenient Z21 app and ᴡʟᴀɴMAUS to manage your whole system
  • Z-CAN interface for a high number of Z21 XL BOOSTERs(10869)

 The rail voltage is not adjustable and depends on the plug used.





10869 - Z21 XL BOOSTER

The advantages of the Z21 XL BOOSTER

  • More output with 6 A 20 V
  • DCC and Motorola track format
  • B-BUS
  • CAN-BUS
  • CDE interface
  • RailCom® recipient and transfer to command station (CAN)
  • Short circuit forwarding to command station (adjustable)
  • Firmware-Update (CAN)
  • RailCom® cut-out (adjustable)

Recommended power supply: 10857 - 120 W switching power supply with output voltage 20 V and 6 A output current
