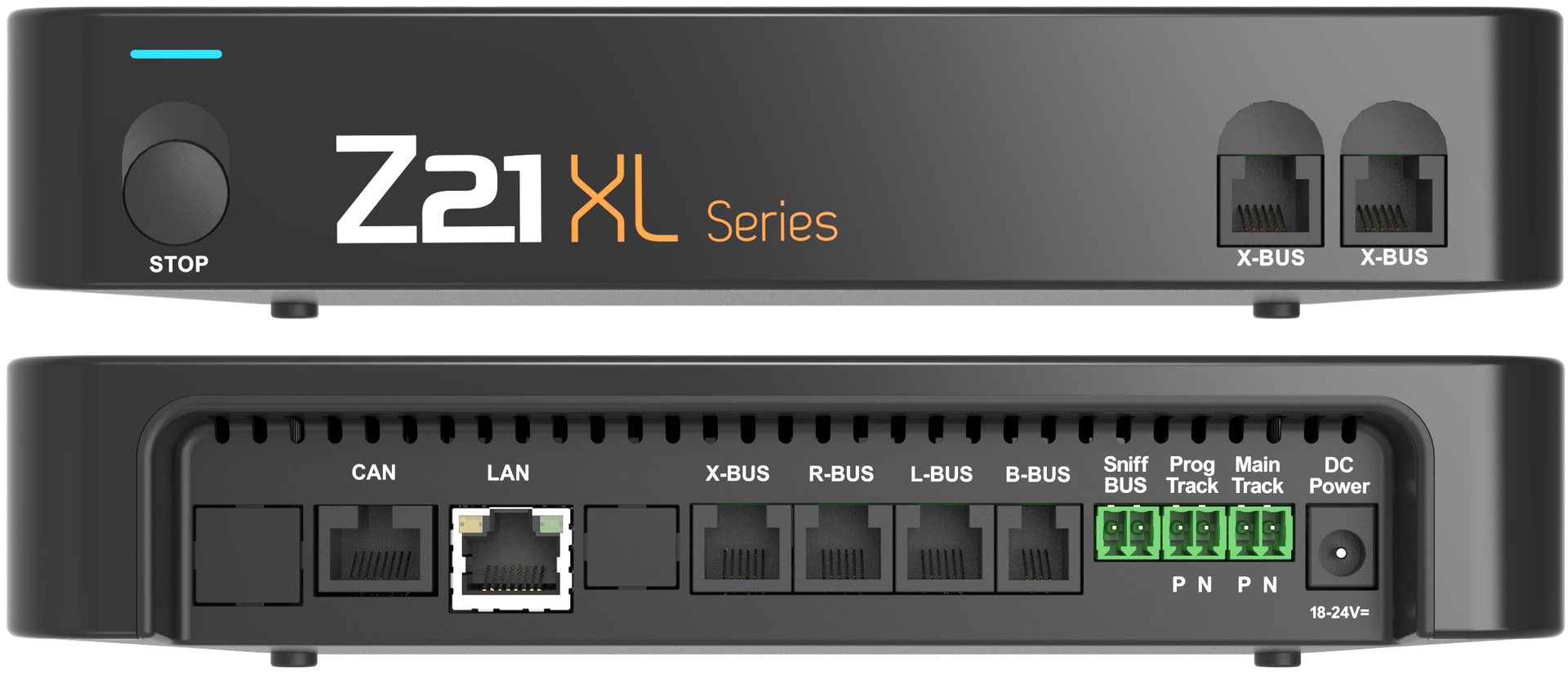

All connections of the Z21 XL series

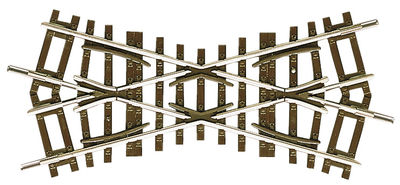

Main Track

● 6 A
● Short circuit detection optimized for big scales

However the track voltage can not be adjusted and depends on the used power supply.

2 Rails DCC



DCC Loco-Decoder

  • 14/28/128 speed steps
  • F0 to F28
  • POM read nbsp#write



DCC Turnout- and Signal-Decoder

  • Configuration of sophisticated decoder
  • 2048 DCC-turnouts

3 Rails MM



MMI and MMII Loco-Decoder

  • MMI: Address 1 to 80 and 14 speed steps
  • MMII: Addresse 1 to 255 and 28 speed steps



MM Turnout-Decoder

  • 255 MM turnouts possible



Prog Track - Programming track

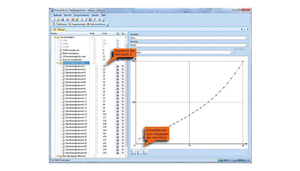

  • CV Programming
    According NMRA S-9.2.3
    Reading/writing CV bit- and byte-wise
    In direct mode
  • MM Programming
    6021 programming mode
    Z21 FW V1.23 or higher
  • Decoder Update for Zimo decoders

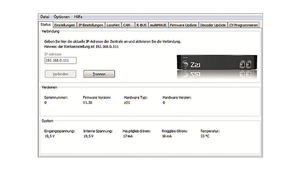

    with Z21 Maintenance Tool
Hint: CV programming can be cancelled by shortly pessing the STOP key

LED Status

Constant blue - Normal operation

Lit in green - Programming mode

Flashing green - Decoder update

Flashing blue - STOP

Flashing red - Short circuit

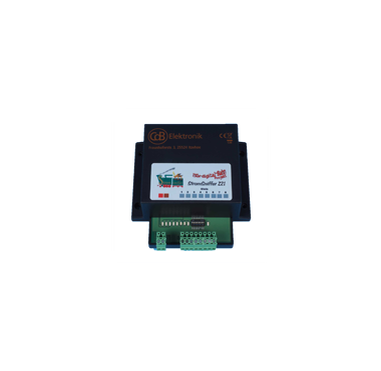

Sniffer BUS

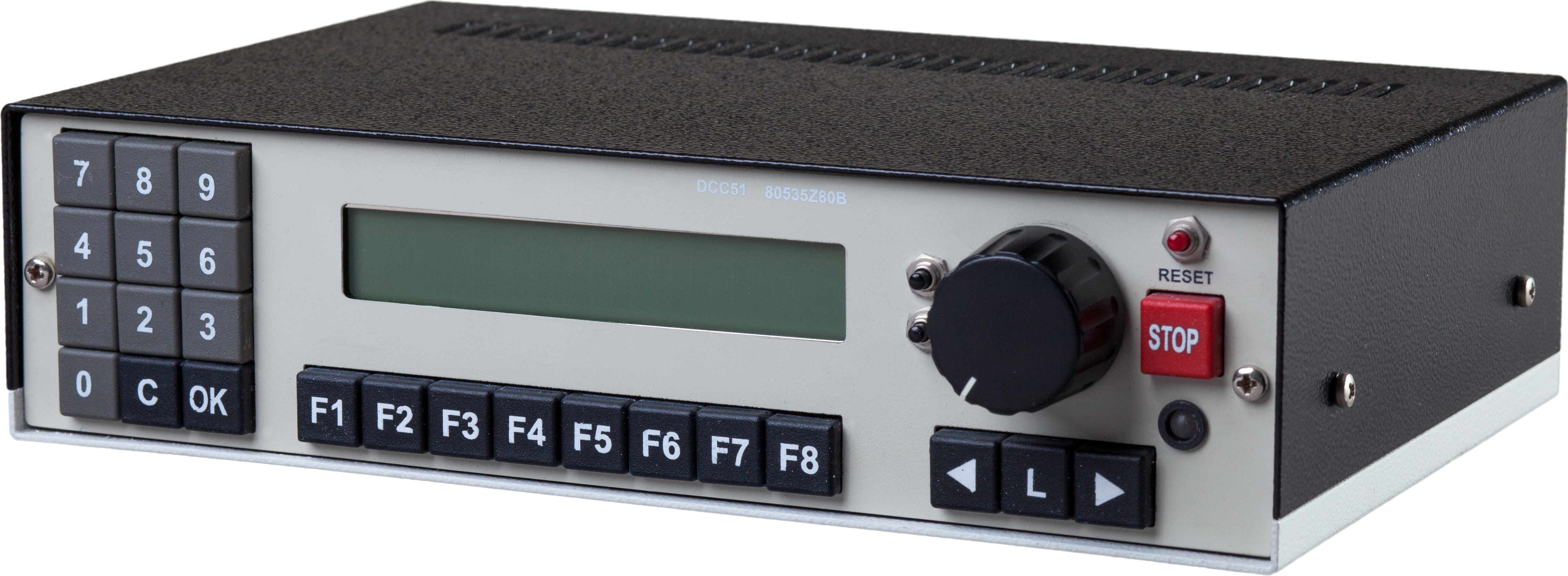

Driving and switching by using your existing legacy DCC digital command station (output voltage of 16 V or higher required).



At any time you can take over the loco with another throttle (or App) connected to the Z21.



The direction of communication is always from the legacy command station → into the Z21.



Booster BUS

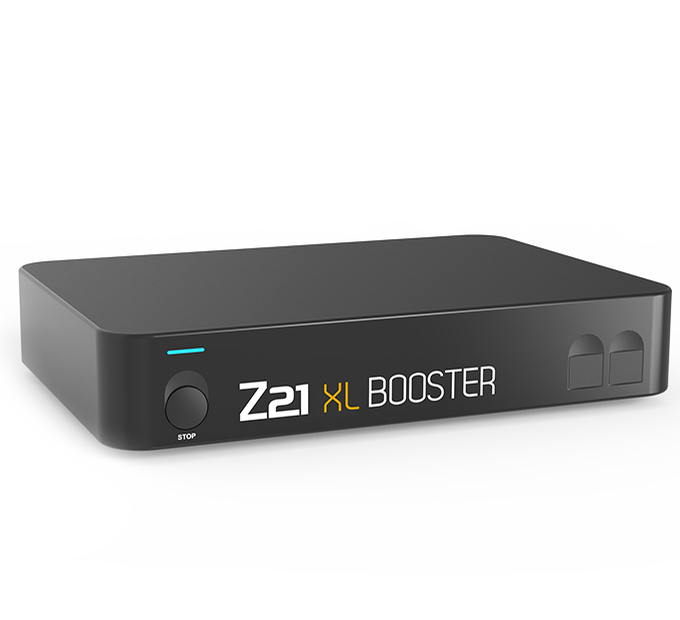

10869 - Z21 XL BOOSTER

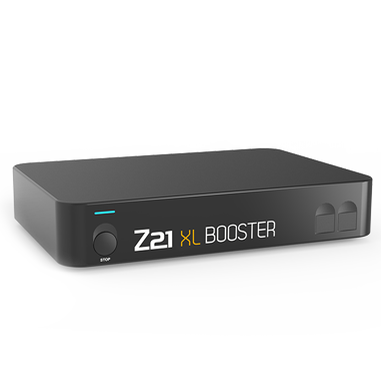

To guarantee the full functionality we recommend to use CAN.

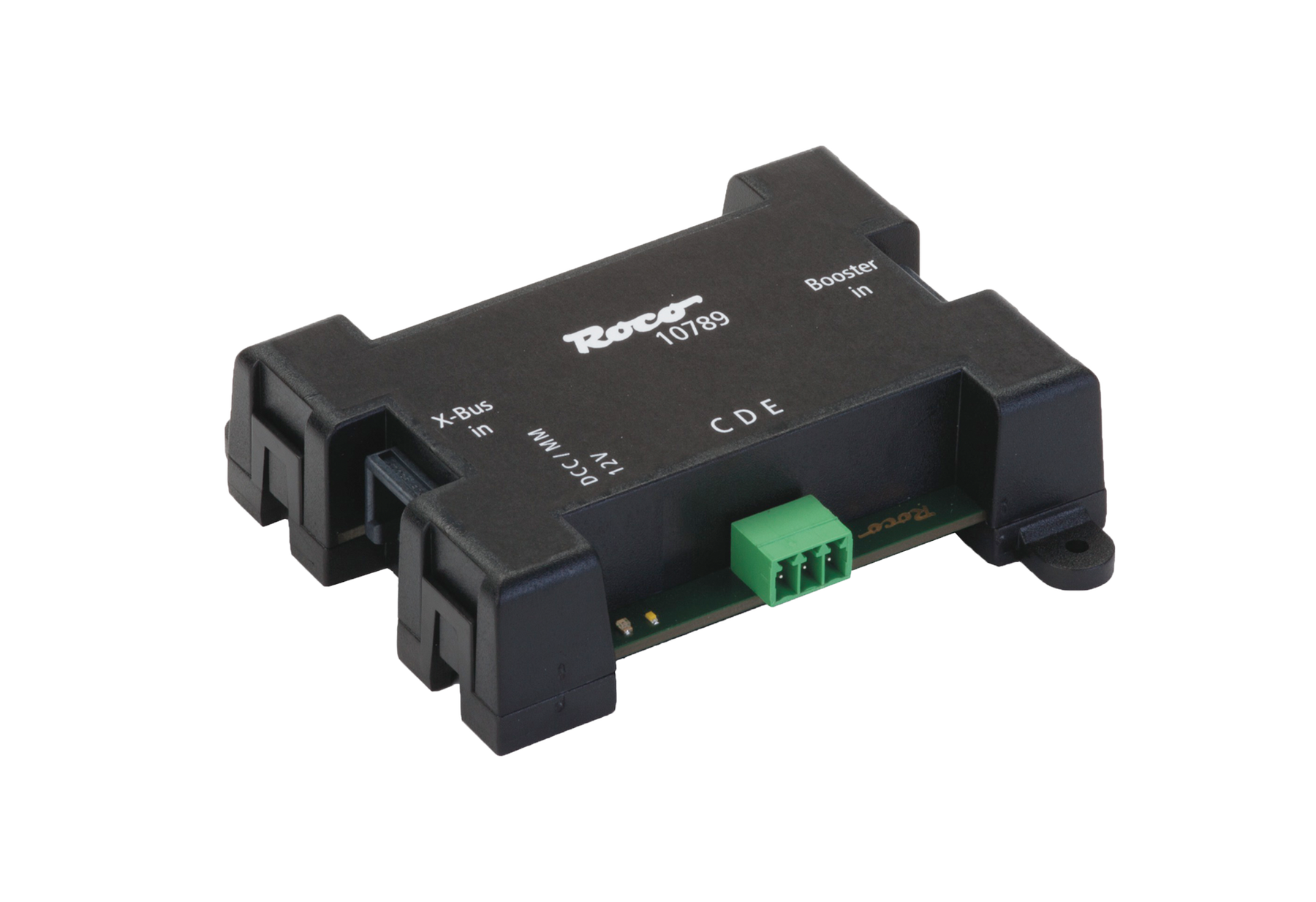

10789 - Z21-CDE Booster Adapter

10-15 Booster with CDE interface

LocoNet BUS

1. Currently supports more than 21 tested Unterstützt aktuell mehr als 21 tested hand controllers and feedback modules of a wide range of manufacturers:

Z21 FW V1.24 or higher

LocoNet T (Master) 12 VDC, 500 mA

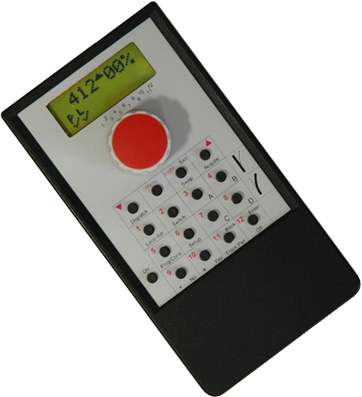

Funky

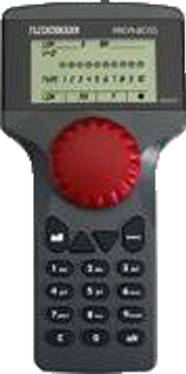

Profi-BOSS as LocoNet Slave

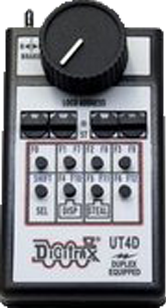

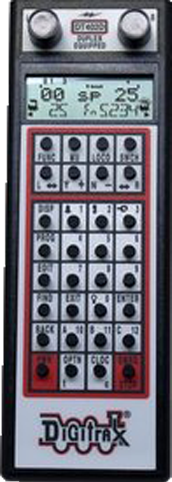

DT402

DT300

UT4

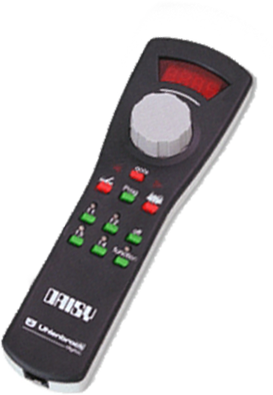

DAISY

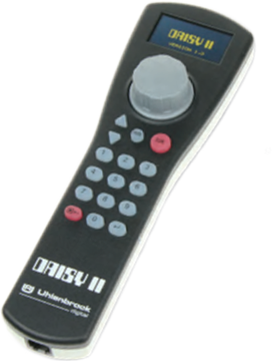

DAISY II

Funkmaster update

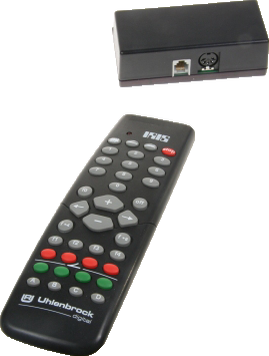

IRIS + 63830 IR-Receiver

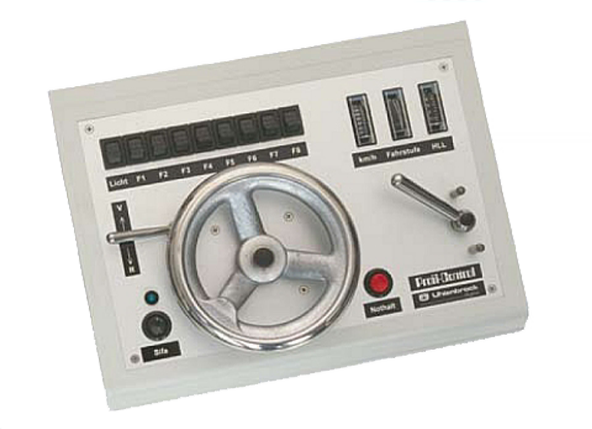

Profi-Control*

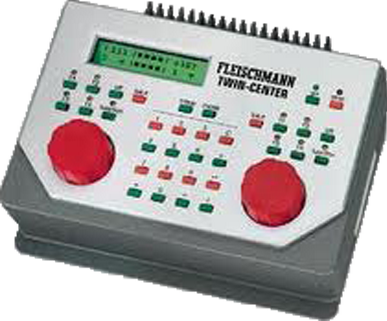

TWIN-CENTER, Intellibox 1, TWIN-CONTROL, IB-Control

LocoNet Slave

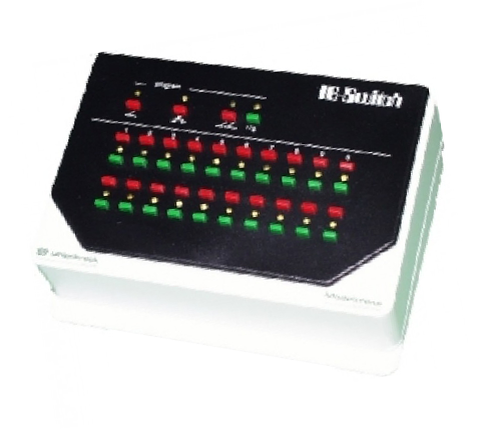

IB-Switch

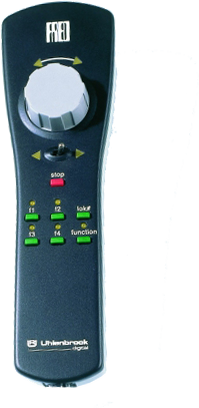

FRED*

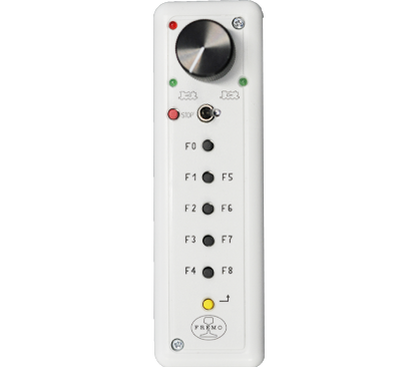

FREMO FRED*

TURN-CONTROL

63100

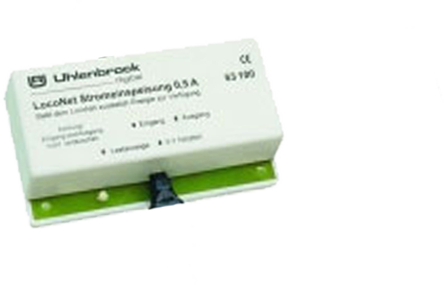

Power supply

63400, 63410

Input/output module

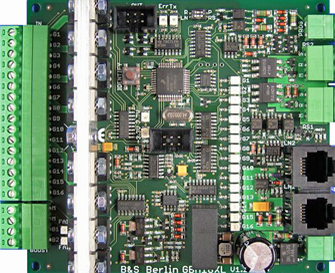

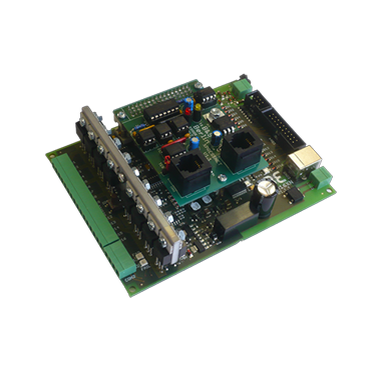

Blücher GBM16XL

Occupancy detector

Blücher GBM16N

LocoNet Interface

Occupancy detector

Train detection using RailCom®



Following modules are not compatible with the Z21:

  • LocoNet Booster
  • BDL168, RX4
    Occupancy detector using transponding



Following modules are not compatible with full bridge power circuits and must not be connected to Z21 or Digitrax command stations:

  • MARCo
  • 63330, 63350
  • 68720, 68730

TWIN-CENTER: Slave mode with FW V2.000 via special option 844 = 1

Intellibox 1: Slave mode with FW V2.001 via special option 844 = 2

(i. e. LocoNet power source = off)



Activating LocoNet slave mode on PROFI-BOSS:

1. C + alt
2. Change MASTER to SLAVE
3. Confirm



* Take over a loco address by using dispatch procedure in Z21 Maintenance or Z21 app

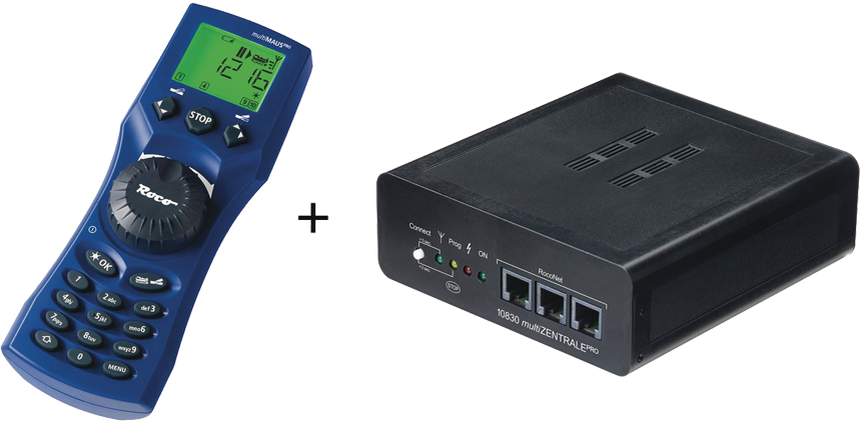

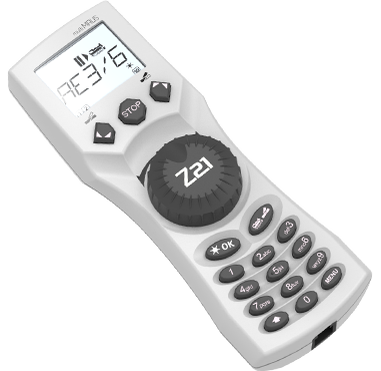

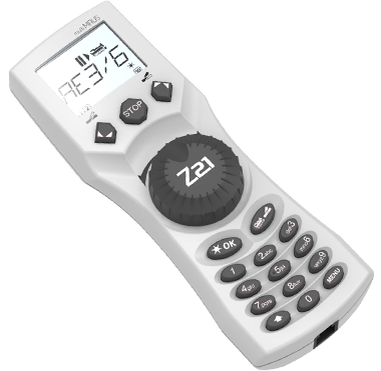

The L-BUS also permits connection via a multiZENTRALEpro to the multiMAUSpro

2. L-BUS enables the connection to multiMAUSpro via multiZENTRALEpro



Z21 FW V1.24 or higher with Z21 as LocoNet master





FW V1.09 (LocoNet slave)

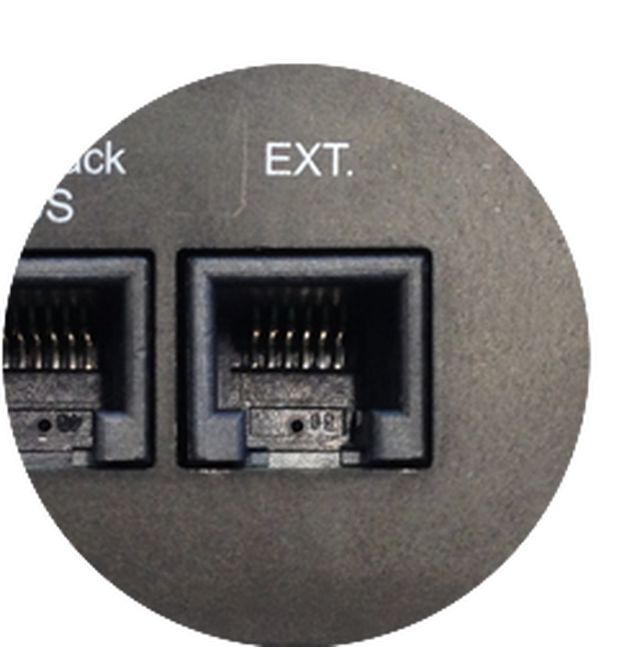

Connect to EXT.

The multiZENTRALEpro is the LocoNet slave and is powered by ther Z21 (12 VDC).

So do not use any power supply for the multiZENTRALEpro!

Connect the tracks with the LocoNet master.

R-BUS

Z21 multiMAUS firmware update and language change by using Z21 Maintenance

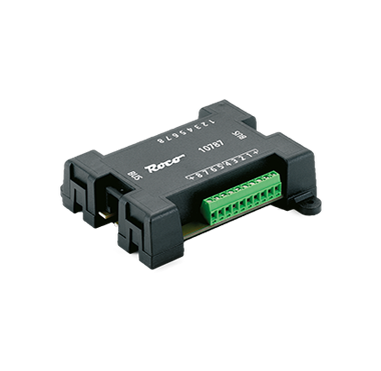

Feedback module (e. g. 10787) for momentary or permanent contacts

20 modules with ascending adresses

8 inputs per feedback module

  • Combinable with circuit tracks (e. g. 61117, 42518 ...)
  • Combinable with sleeper with built-in reed switch (e. g. 42605, 61193 ...)

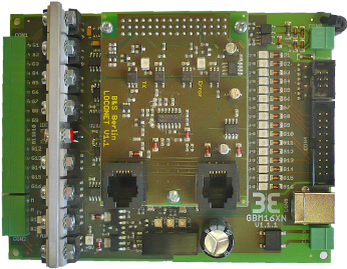

Blücher GBM16XN

XpressNet Interface

GBM FW V1.11.2 or higher

X-BUS

31 devices can be connected to the X-BUS of the Z21.
Including the following:

Lokmaus3

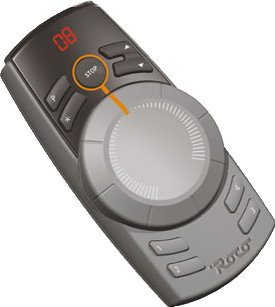

Lokmaus2

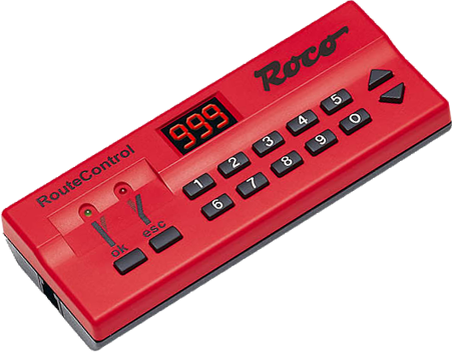

Route Control

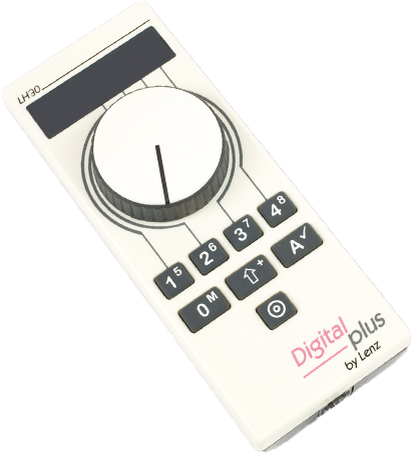

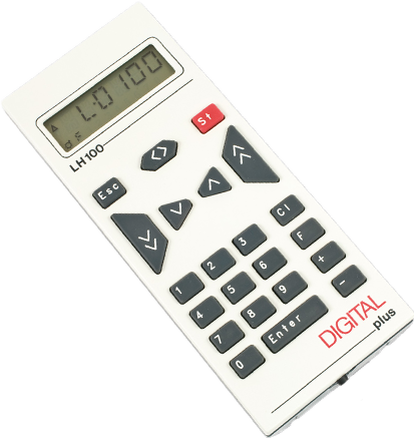

Lenz LH100

Lenz LH30

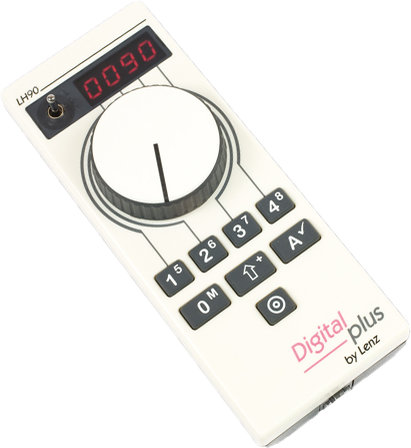

Lenz LH90 - Z21 FW V1.24 or higher

Funky - Z21 FW V1.24 or higher

LAN

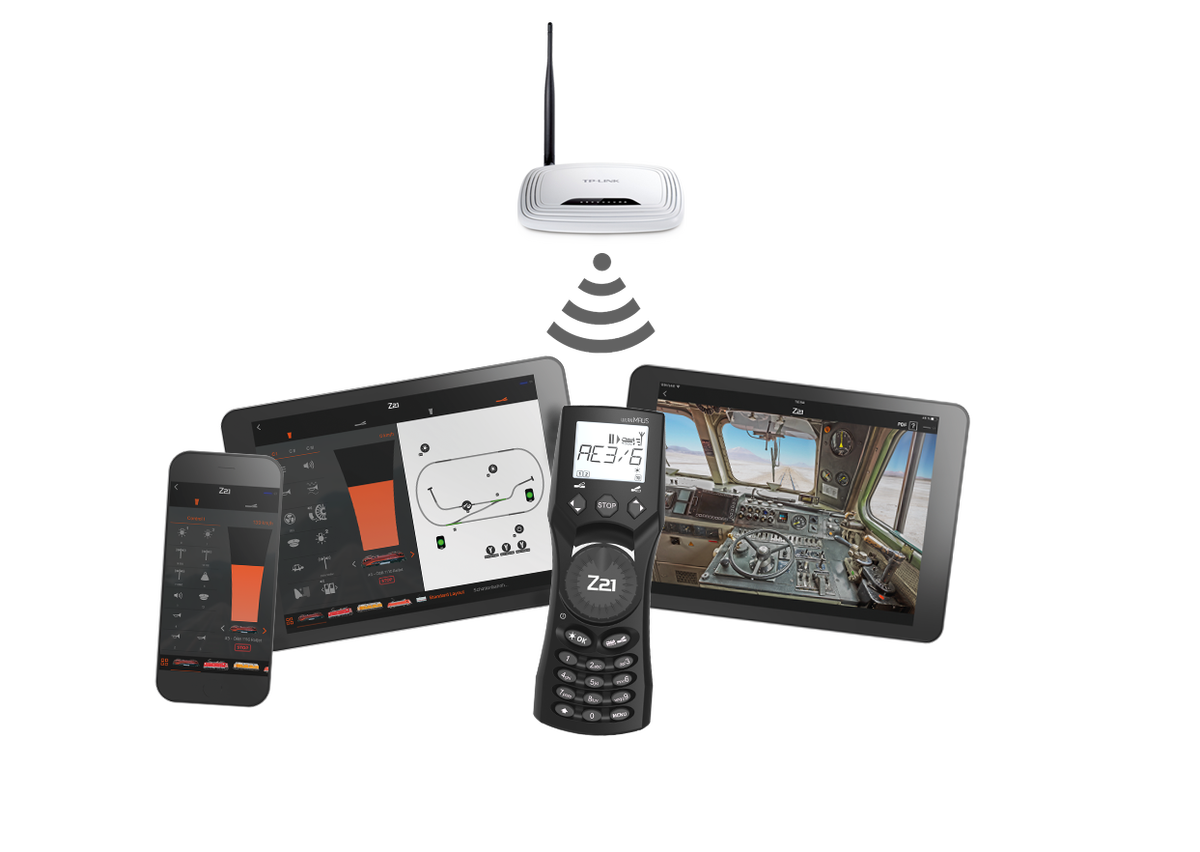

LAN mobile

Connection to the following programmes

Z21 app (Previous version)

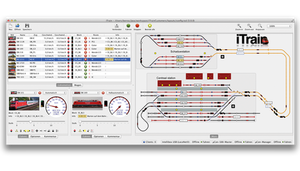

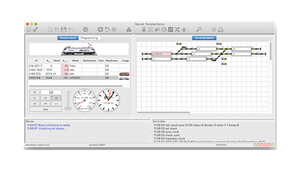

DigiTrainsPro
Rocrail

LAN PC

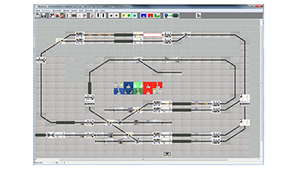

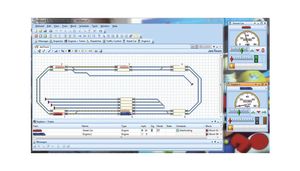

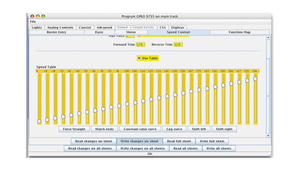

Connection to following programmes

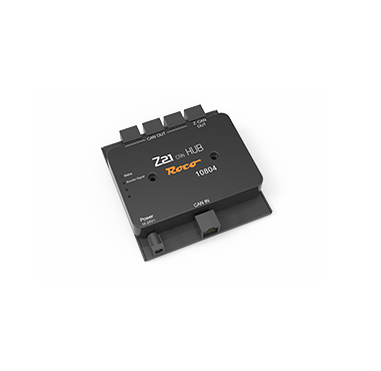

CAN

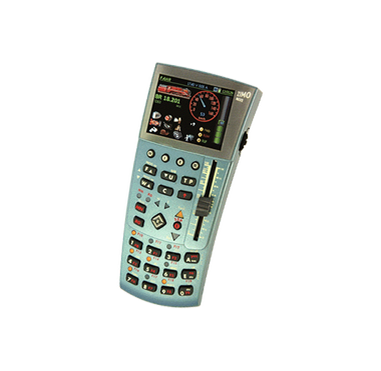

Zimo MX32

Z21 FW V1.25 or higher and Zimo FW V01.15

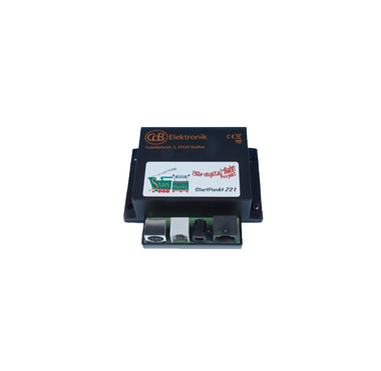

CdB electronics
Distributor

CdB electronics

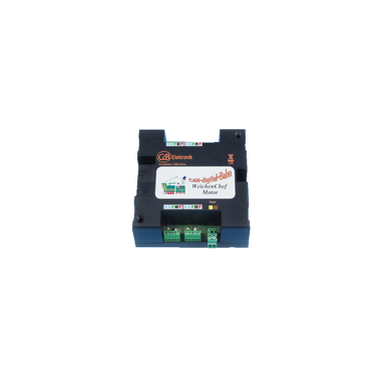

Switching decoder

CdB electronics
Feedback decoder

CdB electronics

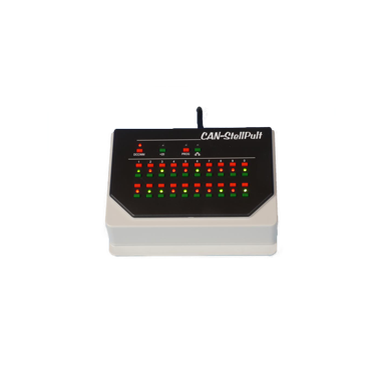

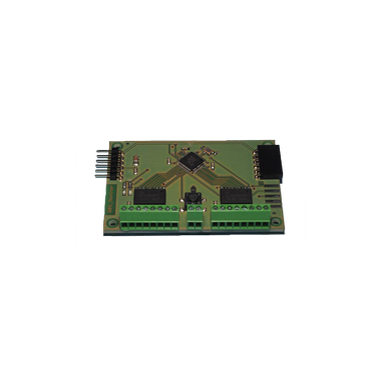

Track diagram control panel

CdB electronics
CAN control panel
