10777 (international)

Signal-ID: 77 (hex: 0x4D)

Using this signal configuration, the following signals can for example be operated:

DB exit signal
DB block signal
DB entry signal
DB stop signal
DB main signal + Zs2
DB main signal + Zs3 with Hp2
DB main signal + Zs3 with Hp1

This signal configuration can also be used to partly replace the Roco 10777 signal decoder which is to be discontinued. In comparison to the old decoder, however, this signal configuration offers additional optional outputs for the direction and speed displays Zs2 and Zs3. In the Z21 signal DECODER, however, four turnout addresses are reserved per signal, whereas only two turnout signals respectively were reserved on the 10777.

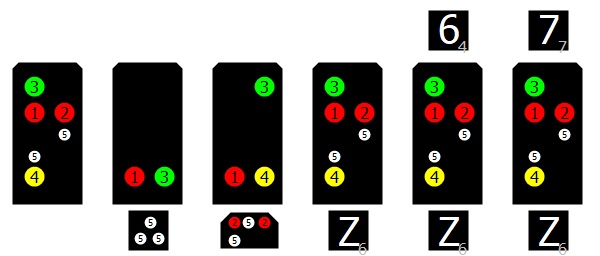

Terminal Assignment

1 - Red LED

Red light for stop

2 - Red LED

Second red stop light (optional, depending on the connected signal type)

3 - Green LED

Green light for proceed

4 - Yellow LED

Yellow light for proceed with speed limit (optional)

5 - White LED

Additional lamps for cancellation of the movement forbidden (optional)

6 - White LED

Possibility of connection to a direction display Zs2 (optional), which is switched on together with signal aspects Hp1 and Hp2. See below

7 - White LED

Possibility of connection to a direction display Zs3 (optional), which is switched on together with signal aspect Hp1. See below

8 - Reserved

Signal aspects

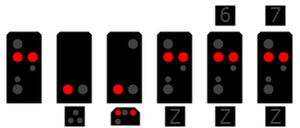

Hp00

DCCext

0

Trigger

1R

Stop for train and shunting movements

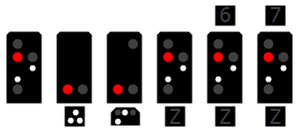

Sh1

DCCext

65

Trigger

2G

Movement forbidden cancelled

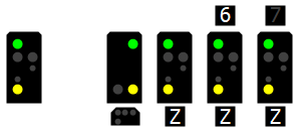

Hp2

DCCext

4

Trigger

2R

Proceed with speed limit (40 km/h)

Using terminal 6, an optional direction display (Zs2) can be switched on as well.
Using terminal 4, an optional speed display (Zs3) can be switched on as well.

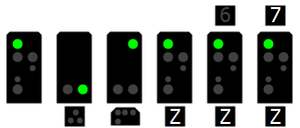

Hp1

DCCext

16

Trigger

1G

Proceed

Using terminal 6, an optional direction display (Zs2) can be switched on as well.
Using terminal 7, an optional speed display (Zs3) can be switched on as well.
