4 single LEDs (international)
Signal-ID: 64 (hex: 0x40)
This signal configuration can be used for general lighting tasks:
- 4 individual LEDs or lamps, individually switchable
Each output can be individually switched on and off, and the other three outputs
remain unchanged.
In addition, it is possible to switch all four outputs together with only one
command via switching commands in the DCCext - "DCC Extended Accessory Command".
This enables even unknown signal types to be operated in a flexible manner, even if
these are not yet stored in the signal DECODER.
Tip: If the signal DECODER is configured for 4 signals (CV40), and then all four signals are set to this signal configuration, then all 16 decoder outputs can be individually switched.

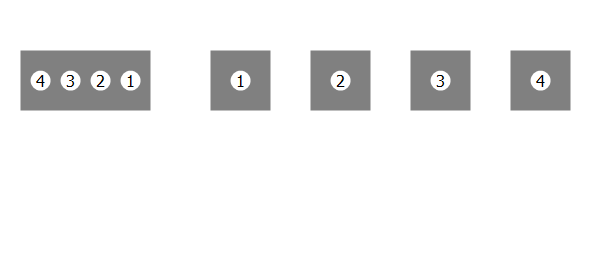

Terminal assignment
1 - Lamp
1st output
2 - Lamp
2nd output
3 - Lamp
3rd output
4 - Lamp
4th output
Signal aspects
0000
DCCext
0
Trigger
-
All four outputs switched off
0001
DCCext
1
Trigger
-
Only output 1 switched on
0010
DCCext
2
Trigger
-
Only output 2 switched on
0011
DCCext
3
Trigger
-
Only outputs 1, 2 switched on
0100
DCCext
4
Trigger
-
Only output 3 switched on
0101
DCCext
5
Trigger
-
Only outputs 1, 3 switched on
0110
DCCext
6
Trigger
-
Only outputs 2, 3 switched on
0111
DCCext
7
Trigger
-
Only outputs 1, 2, 3 switched on
1000
DCCext
8
Trigger
-
Only output 4 switched on
1001
DCCext
9
Trigger
-
Only outputs 1, 4 switched on
1010
DCCext
10
Trigger
-
Only outputs 2, 4 switched on
1011
DCCext
11
Trigger
-
Only outputs 1, 2, 4 switched on
1100
DCCext
12
Trigger
-
Only outputs 3, 4 switched on
1101
DCCext
13
Trigger
-
Only outputs 1, 3, 4 switched on
1110
DCCext
14
Trigger
-
Only outputs 2, 3, 4 switched on
1111
DCCext
15
Trigger
-
All four outputs switched on
O1 on
DCCext
17
Trigger
1G
Switch on output 1
The other three outputs remain unchanged.
O1 off
DCCext
16
Trigger
1R
Switch off output 1
The other three outputs remain unchanged.
O2 on
DCCext
34
Trigger
2G
Switch on output 2
The other three outputs remain unchanged.
O2 off
DCCext
32
Trigger
2R
Switch off output 2
The other three outputs remain unchanged.
O3 on
DCCext
68
Trigger
3G
Switch on output 3
The other three outputs remain unchanged.
O3 off
DCCext
64
Trigger
3R
Switch off output 3
The other three outputs remain unchanged.
O4 on
DCCext
136
Trigger
4G
Switch on output 4
The other three outputs remain unchanged.
O4 off
DCCext
128
Trigger
4R
Switch off output 4
The other three outputs remain unchanged.
