Formvorsignal (ÖBB)
Signal-ID: 163 (hex: 0xA3)
Using this signal configuration, the following signals can for example be operated:
Double aspect semaphore signal with and without lighting
- Distant signal (Caution)
- Distant signal (Clear)
- Square (Caution)
- Square (Clear)
- Retro-reflecting (Caution)
- Retro-reflecting (Clear)
- Ex-DRB (Caution)
- Ex-DRB (Clear)
Semaphore signals can be connected if they fulfil the following conditions:
- Drives switched off at end of travel
- Current consumption < 400 mA per drive
- Common anode
- One control line per signal aspect

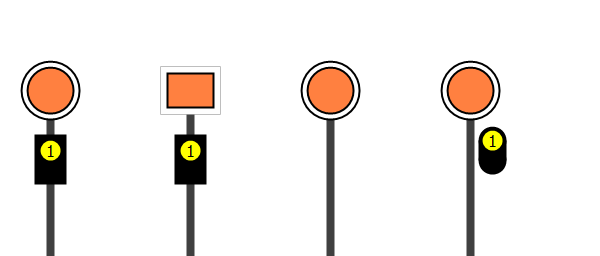

Terminal assignment
1 - Green+Yellow LED
Lighting (optional)
2 - Coil
Connection for “Caution”
3 - Coil
Connection for “Clear”
5 - Coil
Identical with terminal 2 for more power
6 - Coil
Identical with terminal 3 for more power
8 - Reserved
Signal aspects

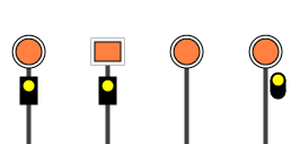

Vorsicht
DCCext
1
Trigger
1R
Main signal indicates stop.

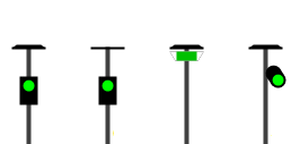

Frei
DCCext
16
Trigger
1G
Main signal indicates clear aspect.
