Voorsein (NS)
Signal-ID: 177 (hex: 0xB1)

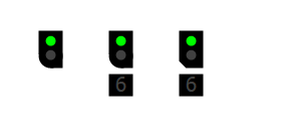

Using this signal configuration, the following signals can for example be operated:
- Voorsein 2 LEDs
- Voorsein 3 LEDs

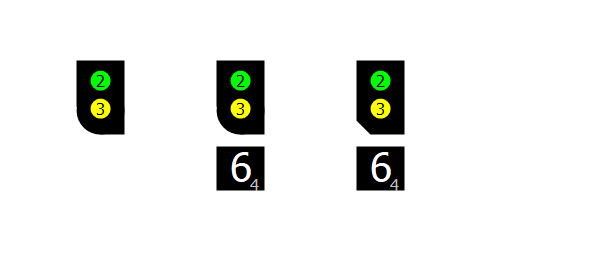

Terminal assignment
2 - Green LED
3 - Yellow LED
4 - White LED
Speed limit (optional)
Signal aspects
219 Rem af tot 40 km/h...
DCCext
1
Trigger
1R
219 Rem af tot 40 km/h, verwacht rood
Expect stop
Speed limit to 40 km/h or less so that it is possible to stop prior to the next
"Stop" signal.
A prior order "Proceed on sight" shall continue to apply.
218 Snelheid begrenzen
DCCext
2
Trigger
2R
Braking to the indicated speed
This speed must be reached prior to the next light signal.
If proceed on sight has to be carried out prior to this signal, then this signal is
of no consequence.
217 Rijden, verwacht groen
DCCext
16
Trigger
1G
Expect green
Pass at max. local permitted speed
If proceed on sight has to be carried out prior to this signal, then this signal is
of no consequence.
