4 fading LEDs (international)

Signal-ID: 65 (hex: 0x41)

This signal configuration can be used for general lighting tasks:

  • 4 individual LEDs or lamps, individually switchable with gentle fade-up and fade-down

This signal configuration is except for the gentle fade-up and fade-down identical with signal ID 64 (0x40), and it is only for operation with light-emitting diodes.

Each output can be individually switched on and off, and the other three outputs remain unchanged.
In addition, it is possible to switch all four outputs together with only one command via switching commands in the DCCext - "DCC Extended Accessory Command". This enables even unknown signal types to be operated in a flexible manner, even if these are not yet stored in the signal DECODER.

Tip: If the signal DECODER is configured for 4 signals (CV40), and then all four signals are set to this signal configuration, then all 16 decoder outputs can be individually switched.

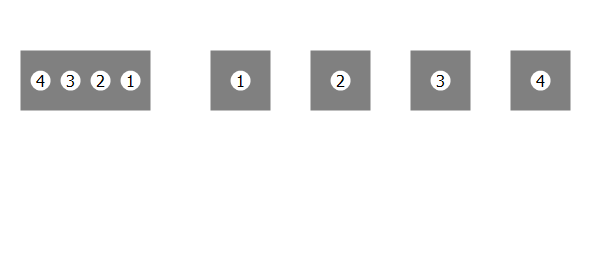

Terminal assignment

1 - LED
1st output
2 - LED
2nd output
3 - LED
3rd output
4 - LED
4th output

Signal aspects

0000

DCCext
0
Trigger
-

All four outputs switched off

0001

DCCext
1
Trigger
-

Only output 1 switched on

0010

DCCext
2
Trigger
-

Only output 2 switched on

0011

DCCext
3
Trigger
-

Only outputs 1, 2 switched on

0100

DCCext
4
Trigger
-

Only output 3 switched on

0101

DCCext
5
Trigger
-

Only outputs 1, 3 switched on

0110

DCCext
6
Trigger
-

Only outputs 2, 3 switched on

0111

DCCext
7
Trigger
-

Only outputs 1, 2, 3 switched on

1000

DCCext
8
Trigger
-

Only output 4 switched on

1001

DCCext
9
Trigger
-

Only outputs 1, 4 switched on

1010

DCCext
10
Trigger
-

Only outputs 2, 4 switched on

1011

DCCext
11
Trigger
-

Only outputs 1, 2, 4 switched on

1100

DCCext
12
Trigger
-

Only outputs 3, 4 switched on

1101

DCCext
13
Trigger
-

Only outputs 1, 3, 4 switched on

1110

DCCext
14
Trigger
-

Only outputs 2, 3, 4 switched on

1111

DCCext
15
Trigger
-

All four outputs switched on

O1 on

DCCext
17
Trigger
1G

Switch on output 1
The other three outputs remain unchanged.

O1 off

DCCext
16
Trigger
1R

Switch off output 1
The other three outputs remain unchanged.

O2 on

DCCext
34
Trigger
2G

Switch on output 2
The other three outputs remain unchanged.

O2 off

DCCext
32
Trigger
2R

Switch off output 2
The other three outputs remain unchanged.

O3 on

DCCext
68
Trigger
3G

Switch on output 3
The other three outputs remain unchanged.

O3 off

DCCext
64
Trigger
3R

Switch off output 3
The other three outputs remain unchanged.

O4 on

DCCext
136
Trigger
4G

Switch on output 4
The other three outputs remain unchanged.

O4 off

DCCext
128
Trigger
4R

Switch off output 4
The other three outputs remain unchanged.
