4 running lights (international)

Signal-ID: 67 (hex: 0x43)

Using this signal configuration, the following signals can for example be operated:

  • Warning lamps for construction sites (guiding light system)
  • Running light
  • Illuminated advertising
  • Warning light for emergency vehicles (blue light)

Terminal assignment

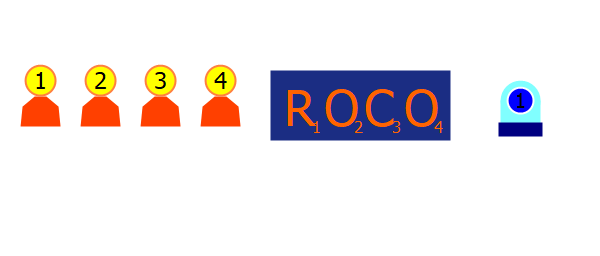

1 - Lighting
1st output
2 - Lighting
2nd output
3 - Lighting
3rd output
4 - Lighting
4th output

Signal aspects

Off

DCCext
0
Trigger
1R

All four outputs switched off

Construction site

DCCext
1
Trigger
1G

Warning lamps for construction sites (guiding light system)

 he lamps are switched on briefly, one after the other (flashes). The process is repeated once per second.

Running light

DCCext
2
Trigger
2G

Running light

The lamps are switched on briefly, one after the other, for 500ms respectively.
The process is repeated continuously.

Billboard

DCCext
3
Trigger
3G

Illuminated advertising

After a short pause, the lamps are switched off one after the other.
The last status with all four lamps switched on is displayed for a slightly longer period; after that, the process is repeated.

Emergency vehicle light

DCCext
4
Trigger
4G

Warning light for emergency vehicles (blue light)

Terminals 1 and 2 function as alternate flashes, using which the rotating beacons on older emergency vehicles can be simulated.
Terminals 3 and 4 function as alternating double flash beacons for more modern emergency vehicles.
