Bremsprobe, Abfahrerlaubnis (SBB)
Signal-ID: 200 (hex: 0xC8)
Using this signal configuration, the following signals can for example be operated:
- Brake test with departure permission
- Departure permission

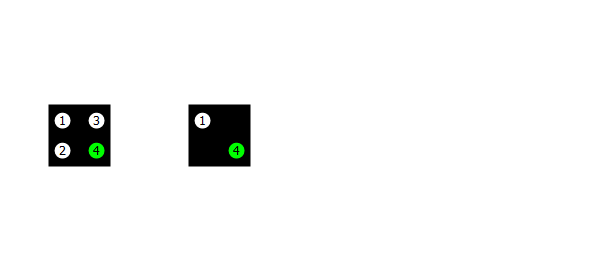

Terminal assignment
1 - White LED
Common white light point top for all signal aspects
2 - White LED
Common white light point bottom for “Brakes with the magnetic rail brake” and “Brake good”
3 - White LED
Common white light point top for “Release” and “Brake good”
4 - Green LED
Departure permission
Signal aspects

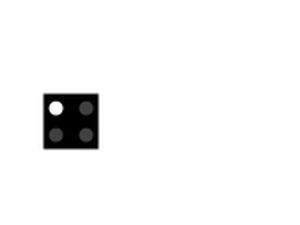

Bremsen
DCCext
1
Trigger
1R
Brake
Apply brake
Magnetschienenbremse
DCCext
33
Trigger
4R
Electromagnetic rail brake
Formerly: "Brake using the through brake"

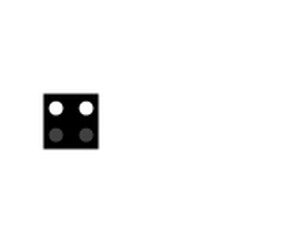

Lösen
DCCext
2
Trigger
2R
Release
Release brake

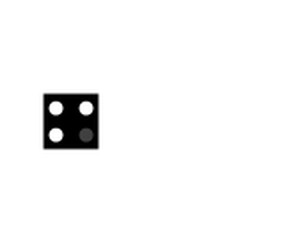

Bremse gut
DCCext
3
Trigger
3R
Brake good

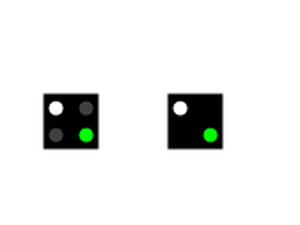

Abfahrerlaubnis
DCCext
48
Trigger
1G
Departure permission
Issue of departure permission
Aus
DCCext
66
Trigger
2G
Off
Dark switching
