Bremsprobe-, Abfahrtsignal (ÖBB)
Signal-ID: 168 (hex: 0xA8)
Using this signal configuration, the following signals can for example be operated:
- Brake test signal (optionally with departure signal)
- Departure signal

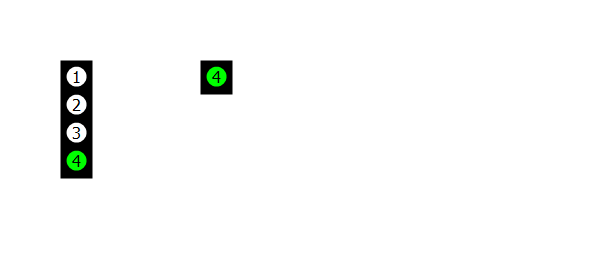

Terminal assignment
1 - White LED
Apply brake
2 - White LED
Release brake
3 - White LED
Brake test ended
4 - Green LED
Departure
Signal aspects

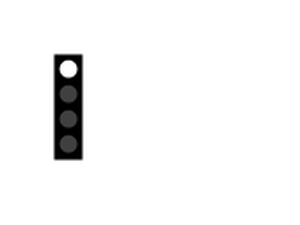

Bremse anlegen
DCCext
1
Trigger
1R
Apply brake

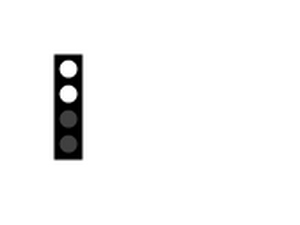

Bremse lösen
DCCext
2
Trigger
2R
Release brake

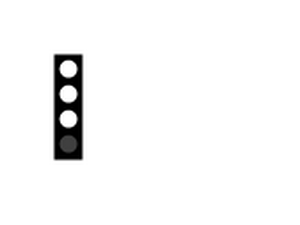

Bremsprobe beendet
DCCext
3
Trigger
3R
Brake test ended

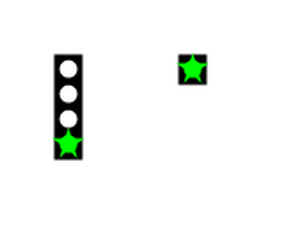

Abfahrt
DCCext
48
Trigger
1G
Departure
Departure allowed
(ended with brake test)

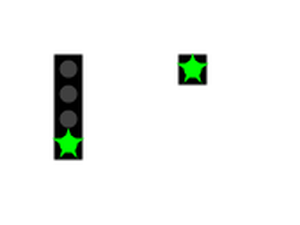

Abfahrt (ohne Bremsprobe)
DCCext
68
Trigger
2G
Departure (without brake test)
Departure allowed
(without brake test lights)

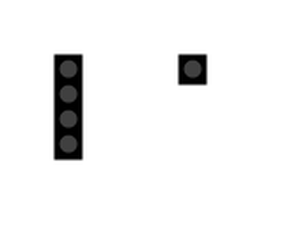

Bremsprobe aus
DCCext
0
Trigger
4R
Ended brake test
Dark switching
Aus
DCCext
66
Trigger
-
Off
Dark switching
(Identical with signal aspect number 6)
