Disque (SNCF)
Signal-ID: 243 (hex: 0xF3)
Using this signal configuration, the following signals can for example be operated:
- Disque D / A / VL
- Disque D / A / VL / R

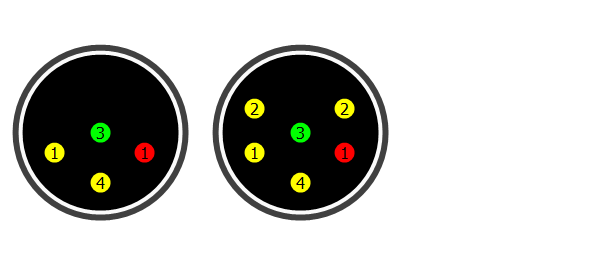

Terminal assignment
1 - Red+Yellow LED
Disque D (optional)
2 - Yellow+Yellow LED
Ralentissement 30 R (optional)
3 - Green LED
Voie Libre VL
4 - Yellow LED
Avertissement A (optional)
Signal aspects
D
DCCext
1
Trigger
1R
Disque D
The Disque requests the traction unit driver to proceed on sight and announces a stop aspect at the next turnout (even if this permits clear to proceed), signals or platform.
A
DCCext
4
Trigger
2G

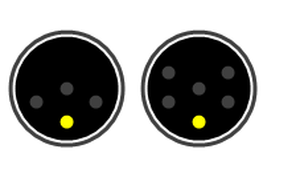

Avertissement A
Permits trains to pass; the train must be able to stop before the next signal.
R
DCCext
3
Trigger
2R
Ralentissement 30 R
Speed limit for a turnout area of 30 km/h.
(A)
DCCext
36
Trigger
3G

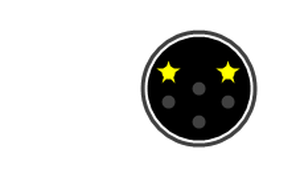

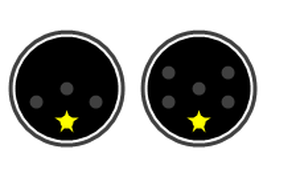

Feu jaune clignotant (A)
Permits trains to pass and announces an Avertissement A which stands at a shortened braking path distance from the next stop aspect.
(R)
DCCext
6
Trigger
3R
Ralentissement 60 (R)
Speed limit for a turnout area of 60 km/h.
(VL)
DCCext
48
Trigger
4G

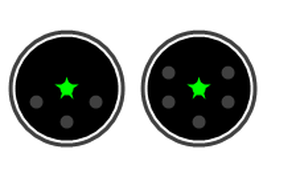

Feu vert clignotant (VL)
Permits trains to pass and requests the traction unit driver to reduce the speed until the next signal to 160 km/h.
VL
DCCext
16
Trigger
1G
Voie Libre VL
Track clear. Permits trains to pass.
(R)+(A)
DCCext
42
Trigger
4R
Ralentissement 60/Feu jaune clignotant (R)+(A)
Speed limit for a turnout area of 60km/h, and announces an Avertissement A, which stands at a shortened braking path distance from the next stop aspect.
