Hauptsignal Ep 3 (ÖBB)
Signal-ID: 170 (hex: 0xAA)
Using this signal configuration, the following signals can for example be operated:
- Construction from 1954 with 30b
- Construction from 1954 with Emergency red
- Construction from 1954 with 5 lamps
- Construction from 1934
Terminal 8 can alternatively be used either for "Emergency red" or for "30b through passage permitted".

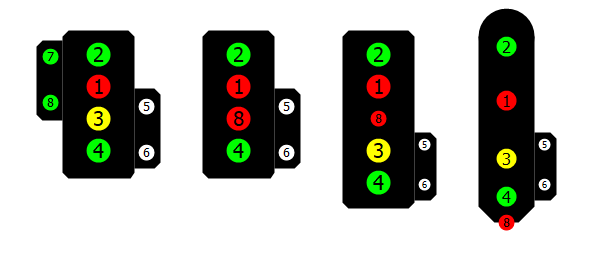

Terminal assignment
1 - Red LED
2 - Green LED
3 - Yellow LED
4 - Green LED
Second green light for “Clear with 60 km/h”
5 - White LED
Substitution signal or 29b alternate flash
6 - White LED
29b alternate flash second light (if available)
7 - Green LED
30b (if available)
8 - Gren/Red LED
Alternative Emergency red (if available), 30b alternate flash second green light (if available)
Signal aspects

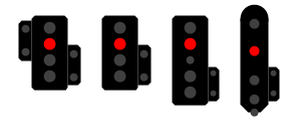

Halt
DCCext
0
Trigger
1R
Stop
Stop for train movements

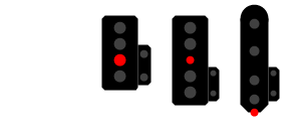

Notrot
DCCext
64
Trigger
3R
Emergency red
Alternative to signal 30b

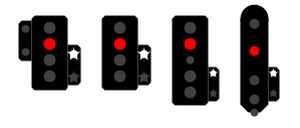

29b/Ersatzsignal
DCCext
69
Trigger
4R
29b/Substitution signal
29b = "Passing permitted"
29b blinkt
DCCext
-
Trigger
-
29b flashing
(used internally in the decoder)

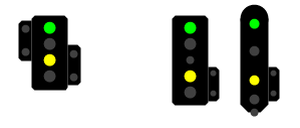

Frei mit 40 km/h
DCCext
4
Trigger
2G
Clear with 40 km/h

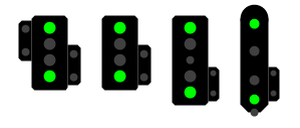

Frei mit 60 km/h
DCCext
6
Trigger
3G
Clear with 60 km/h

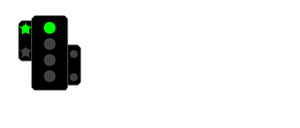

30b
DCCext
48
Trigger
4G
30b = "Through passage permitted" alternative to Emergency red

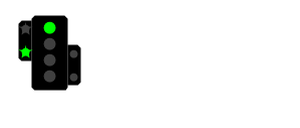

30b blinkt
DCCext
-
Trigger
-
30b flashing
(used internally in the decoder)
Frei
DCCext
16
Trigger
1G
Clear
