Hl-Signal (DR)

Signal-ID: 221 (hex: 0xDD)

Using this signal configuration, the following signals can for example be operated:

Multiple section signal
Hl multiple section signal (DV 301)
Hl distant signal (DV 301)

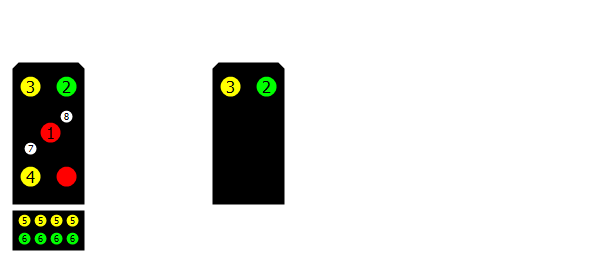

Terminal assignment

1 - Red LED

Main red

2 - Green LED

Proceed with maximum speed (steady light) or 100 km/h (flashing light)

3 - Yellow LED

Expect stop (steady light), moderate speed (flashing light)

4 - Yellow LED

Speed limit from the signal location

5 - Yellow LED

Light strip (optional): valid speed from the signal location (60 km/h)

6 - Green LED

Light strip (optional): valid speed from the signal location (100 km/h)

7 - White LED

Ra12 (Sh1), Zs1

8 - White LED

Ra12 (Sh1)

Signal aspects

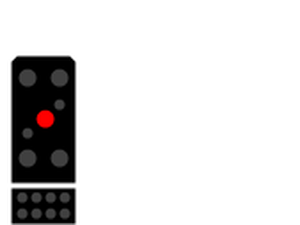

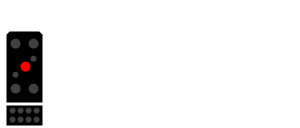

Hp0/Hl13

DCCext

0

Trigger

1R

Mode

3R

Stop

(up to 1990 Hl13, after that Hp0)

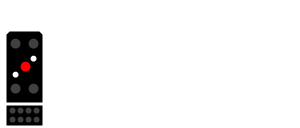

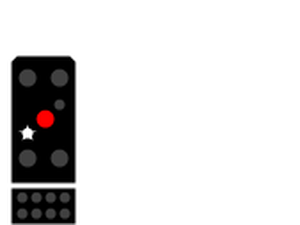

Hp0+Zs1

DCCext

69

Trigger

-

Substitution signal

Pass signal Hp0 or faulty light main signal without written command.

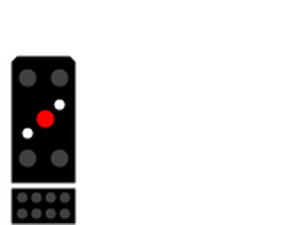

Hp0+Ra12

DCCext

65

Trigger

2G

Mode

3G

Sh1 - Movement forbidden cancelled.

Ra12 - Shunting signal - Shunting movements permitted.

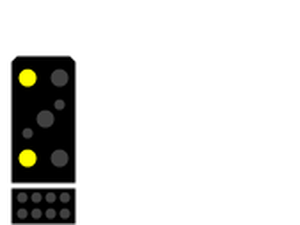

Hl12a

DCCext

33

Trigger

2R

Mode

3G

Moderate speed 40 km/h,
expect stop

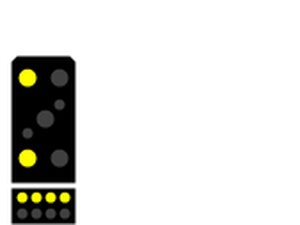

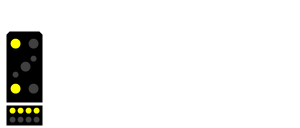

Hl12b

DCCext

129

Trigger

1R

Mode

4R

Moderate speed 60 km/h,
expect stop

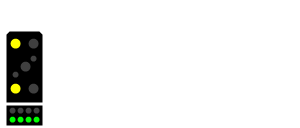

Hl11

DCCext

161

Trigger

1R

Mode

4G

Moderate speed 100 km/h,
expect stop

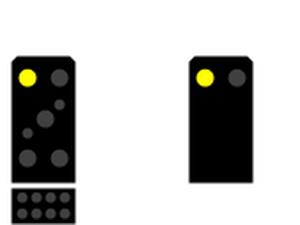

Hl10

DCCext

1

Trigger

1R

Mode

3G

Expect stop

Hl9a

DCCext

36

Trigger

-

Proceed with 40 km/h,
then with 40 or 60 km/h

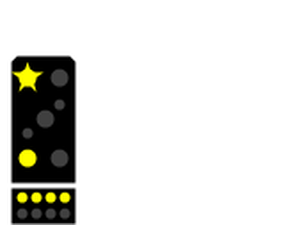

Hl9b

DCCext

132

Trigger

2R

Mode

4R

Proceed with 60 km/h,
then with 40 or 60 km/h

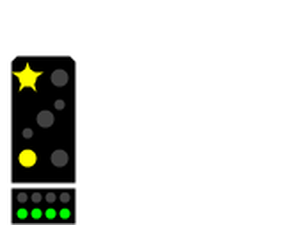

Hl8

DCCext

164

Trigger

2R

Mode

4G

Speed 100 km/h,
moderate to 40 or 60 km/h

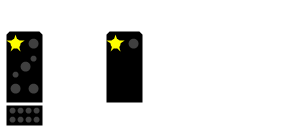

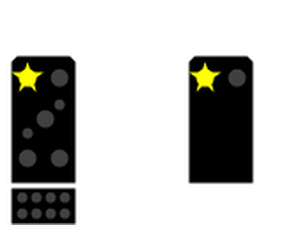

Hl7

DCCext

4

Trigger

2R

Mode

3R

Moderate maximum speed to 40 or 60 km/h

Hl6a

DCCext

42

Trigger

-

Proceed with 40 km/h,
then with 100 km/h

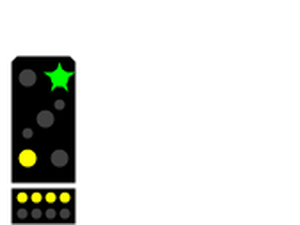

Hl6b

DCCext

138

Trigger

2G

Mode

4R

Proceed with 60 km/h,
then with 100 km/h

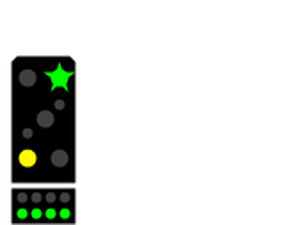

Hl5

DCCext

170

Trigger

2G

Mode

4G

Proceed with 100 km/h

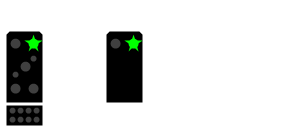

Hl4

DCCext

10

Trigger

2G

Mode

3R

Moderate maximum speed to 100 km/h

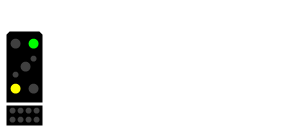

Hl3a

DCCext

48

Trigger

1G

Mode

3G

Proceed with 40 km/h,
then with maximum speed

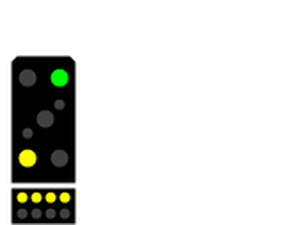

Hl3b

DCCext

144

Trigger

1G

Mode

4R

Proceed with 60 km/h,
then with maximum speed

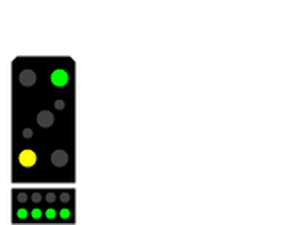

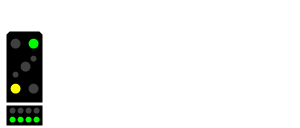

Hl2

DCCext

176

Trigger

1G

Mode

4G

Proceed with 100 km/h,
then with maximum speed

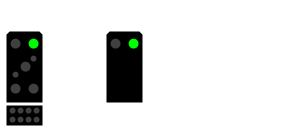

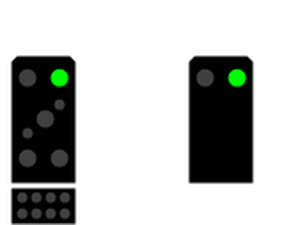

Hl1

DCCext

16

Trigger

1G

Mode

3R

Proceed with maximum speed

With the usual "DCC Basic Accessory Command", only 4*4=16 signal aspects can be switched, see the columns "Trigger" and "Mode".Theoretically, however, an Hl signal can when fully developed present up to 19 signal aspects. For this reason, restrictions must be made for the signal aspects "Hp0+Zs1", "Hl9a" (proceed with 40 km/h, then with 40 or 60 km/h) and "Hl6a" (proceed with 40 km/h, then with 100 km/h). If necessary, however, these aspects can still be shown in the form of a makeshift solution if you can do without the yellow or green light strips on terminals 5 or 6 in the respective signal.

If, however, you wish to use the full scope of functions and really want to switch all possible signal aspects, then you can do this using a DCC control centre which commands the "DCC Extended Accessory Command". See also the column DCCext. The values for DCCext result from the following system:

0, 65 and 69 stand for "Stop", "Shunting signal" and "Substitution signal"
The following values stand for the next signal to be expected: 1="Expect stop", 4="40 or 60 km/h", 10="100 km/h" and 16="Maximum speed". This is sufficient in order for example to switch the distant signal.
In order to optionally display a speed limit at the location of the multiple section signal, you can add the following values: 32="40 km/h", 128="60 km/h" and 160="100 km/h" at the location.

Example:
10 = "100 km/h" at the next signal
128 = "60 km/h at the location"
10 + 128 = 138 ... is equivalent to Hl6b "Proceed with 60 km/h, then with 100 km/h", see also signal aspect "Hl6b" above.
