Hoofdsein (NS)
Signal-ID: 176 (hex: 0xB0)
Using this signal configuration, the following signals can for example be operated:
- Hoofdsein 2 LEDs
- Hoofdsein 3 LEDs
- Hoofdsein 4 LEDs
- Dwergsein

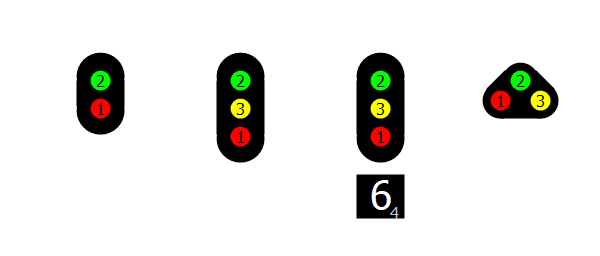

Terminal assignment
1 - Red LED
2 - Green LED
3 - Yellow LED
4 - White LED
Speed limit (optional)
Signal aspects

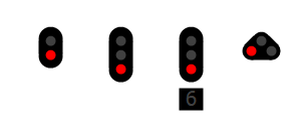

215 Stop
DCCext
0
Trigger
1R
Stop
212 Verwacht rood
DCCext
1
Trigger
2R
Expect stop
Speed limit to 40 km/h or less so that it is possible to stop prior to the next "Stop" signal.

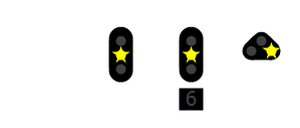

214 Rijden op zicht
DCCext
33
Trigger
3R
Proceed on sight, max. 40 km/h

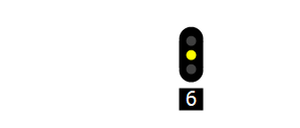

210 Snelheid begrenzen
DCCext
2
Trigger
4R
Braking to the indicated speed
This speed must be reached prior to the next light signal.

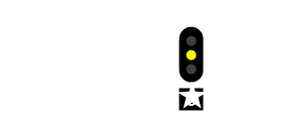

209 Snelheid begrenzen...
DCCext
34
Trigger
4G
209 Snelheid begrenzen, blijf remmen
Initiate braking, continue to brake
The indicated speed does not have to be reached by the next signal (distance too
short).
The train must continue to brake until the indicated speed is reached by the next
but one signal.

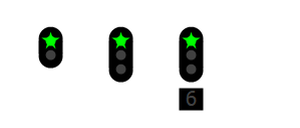

206 Rijden max. 40 km/h
DCCext
4
Trigger
2G
Pass at max. 40 km/h

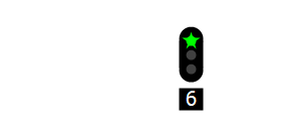

202 Rrijden met snelheidsbeperking
DCCext
6
Trigger
3G
202 Rrijden met snelheidsbeperking
Pass at max. indicated speed

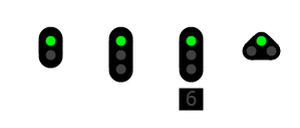

201 Rijden
DCCext
16
Trigger
1G
Pass at max. local permitted speed
