H/V Hauptsignal (DB)
Signal-ID: 208 (hex: 0xD0)
Using this signal configuration, the following signals can for example be operated:
- Block signal + Zs1
- Entry signal + Zs1
- Main signal + stop signal
- Main signal + Zs2 + Zs3
- Exit signal + Zs1
- Exit signal + Zs2 + Zs3
Terminal 4 can alternatively be used either for "Emergency red" or for "Zs1".

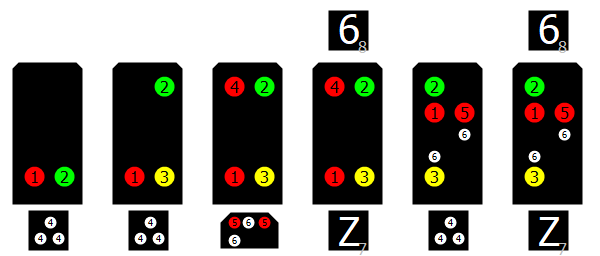

Terminal assignment
1 - Red LED
Hp0/Hp00
2 - Green LED
Hp1/Hp2
3 - Yellow LED
Hp2
4 - White LED
Zs1 substitution signal / Zs8 against track crossing signal replacement. Alternative: Emergency red
5 - Red LED
Hp00 / Sh0 (second red lamp)
6 - White LED
Sh1
7 - White LED
Zs2 direction display (optional)
8 - White LED
Zs3 speed display (optional)
Signal aspects

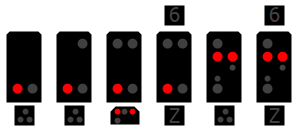

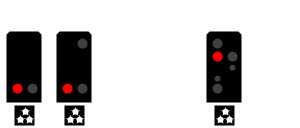

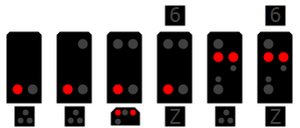

Hp00/Hp0+Sh0
DCCext
0
Trigger
1R
Mode
3R
Stop for train and shunting movements

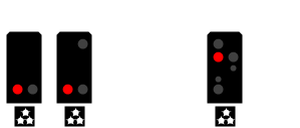

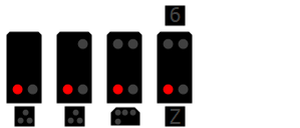

Hp0
DCCext
68
Trigger
-
Stop for train movements

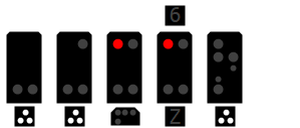

Zs1/Emergency red terminal 4
DCCext
64
Trigger
1R
Mode
4R
Terminal 4 can alternatively be used either for "Emergency red" or for "Zs1".

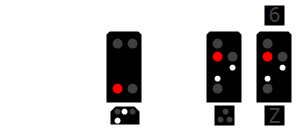

Hp0+Zs1
DCCext
69
Trigger
1R
Mode
3G
Pass signal Hp0 or faulty light main signal without written command.
Hp0+Zs8
DCCext
70
Trigger
2R
Mode
3G
Pass main signal indicating stop or faulty; the path of movement leads onto the section of track running opposite to the usual direction of movement.

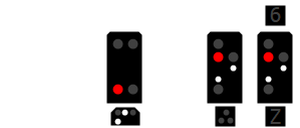

Hp0+Sh1
DCCext
65
Trigger
2R
Mode
3R
Movement forbidden cancelled

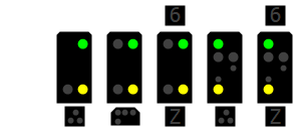

Hp2
DCCext
4
Trigger
2G
Mode
3R
Proceed with speed limit (40 km/h)
Hp2+Zs2
DCCext
36
Trigger
2G
Mode
3G
Proceed with speed limit (40 km/h), with direction display

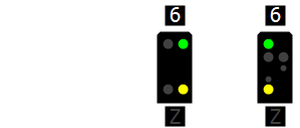

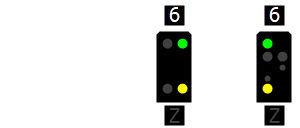

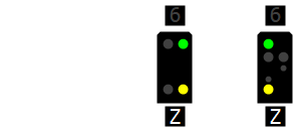

Hp2+Zs3
DCCext
6
Trigger
2G
Mode
4G
Proceed with speed limit in accordance with speed display
Up to and including 60 km/h, the main signal indicates the Hp2 signal position. The additional signal Zs3 can indicate the reference numbers 2, 3, 5 or 6.
However, there is no number 4. In practice, usually number 6 is to be found as Zs3.

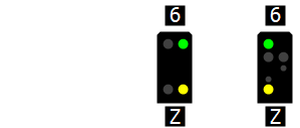

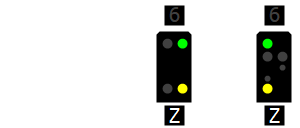

Hp2+Zs2+Zs3
DCCext
38
Trigger
2G
Mode
4R
Proceed with speed limit in accordance with speed display and with direction display

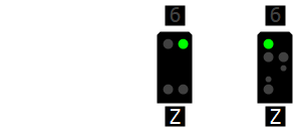

Hp1+Zs2+Zs3
DCCext
41
Trigger
1G
Mode
4R
Proceed with direction display and speed display

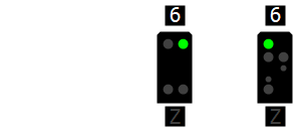

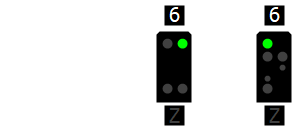

Hp1+Zs3
DCCext
9
Trigger
1G
Mode
4G
Proceed with speed display
From 70 km/h, the main signal Hp1 and the additional signal Zs3 indicates the numbers 7-15.

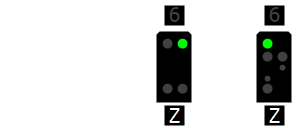

Hp1+Zs2
DCCext
48
Trigger
1G
Mode
3G
Proceed with direction display

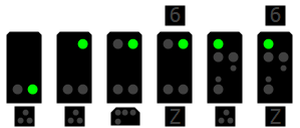

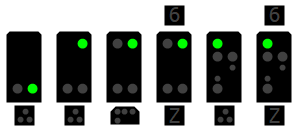

Hp1
DCCext
16
Trigger
1G
Mode
3R
Proceed
Proceed with maximum permitted speed.
Sorted according to mode
Hp00 / Hp0+Sh0
Trigger
1R
Mode
3R
Hp1
Trigger
1G
Mode
3R
Hp0+Sh1
Trigger
2R
Mode
3R
Hp2
Trigger
2G
Mode
3R
Hp0+Zs1
Trigger
1R
Mode
3G
Hp1+Zs2
Trigger
1G
Mode
3G
Hp0+Zs8
Trigger
2R
Mode
3G
Hp2+Zs2
Trigger
2G
Mode
3G
Zs1 / Emergency red terminal 4
Trigger
1R
Mode
4R
Hp1+Zs2+Zs3
Trigger
1G
Mode
4R
Hp2+Zs2+Zs3
Trigger
2G
Mode
4R
Hp1+Zs3
Trigger
1G
Mode
4G
Hp2+Zs3
Trigger
2G
Mode
4G
