Indicateur Direction (SNCF)
Signal-ID: 244 (hex: 0xF4)
Using this signal configuration, the following signals can for example be operated:
- Direction display with 2 to 6 lamps

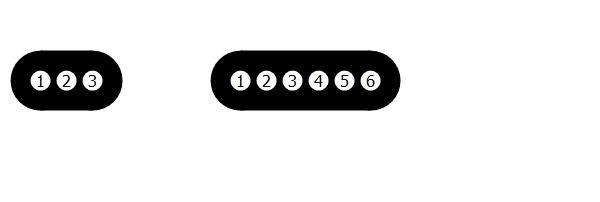

Terminal assignment
1 - White LED
1st Lamp from left
2 - White LED
2nd Lamp from left
3 - White LED
3rd Lamp from left (optional)
4 - White LED
4th Lamp from left (optional)
5 - White LED
5th Lamp from left (optional)
6 - White LED
6th Lamp from left (optional)
Signal aspects
I.D. 0
DCCext
0
Trigger
1R
All lamps off.
I.D. 1
DCCext
1
Trigger
1G
The path of movement runs into the first route.
I.D. 2
DCCext
2
Trigger
2G
The path of movement runs into the second route.
I.D. 3
DCCext
3
Trigger
3G
The path of movement runs into the third route.
I.D. 4
DCCext
4
Trigger
4G
The path of movement runs into the fourth route.
I.D. 5
DCCext
5
Trigger
2R
The path of movement runs into the fifth route.
I.D. 6
DCCext
6
Trigger
3R
The path of movement runs into the sixth route.
Off
DCCext
66
Trigger
-
All lamps off.
Identical with number 1.
