Ks Hauptsignal (DB)

Signal-ID: 219 (hex: 0xDB)

Using this signal configuration, the following signals can for example be operated:

Ks-multiple section signal + Zs1
Ks-multiple section signal + Zs7
Ks-main signal + Zs1
Ks-main signal + Zs7
Ks-distant signal

The combination signals can take on the function of the main signal, distant signal or a combined main and distant signal (multiple section signal).

The Z21 signal DECODER can also control additional signals and additional lights such as Zs1, Zs3, Zs3v, shortened braking path and distant signal repeater. In addition, depending on the signal design, either Zs7 or Sh1 can be presented.

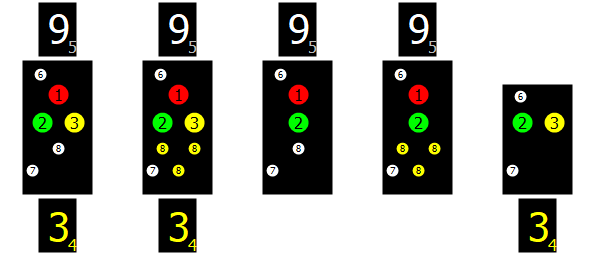

Terminal assignment

1 - Red LED

Signal light Hp0

2 - Green LED

Signal light Ks1

3 - Yellow LED

Signal light Ks2

4 - Yellow LED

Zs3v distant speed display (optional)

5 - White LED

Zs3 speed display (optional)

6 - White LED

Additional light shortened braking path (“vBw”)

7 - White LED

Zs1/Distant signal repeater (“Vwh”)/Sh1 (optional)

8 - White/Yellow LED

Sh1 (optional)/Zs7 (alternative)

Signal aspects

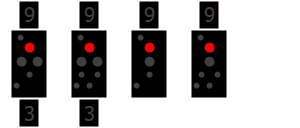

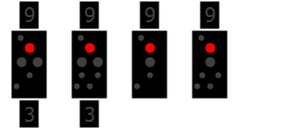

Hp0

DCCext

0

Trigger

1R

Mode

3R

Stop

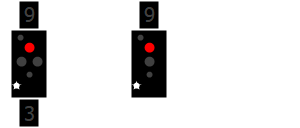

Hp0+Zs1

DCCext

69

Trigger

1R

Mode

4G

Substitution signal

Pass signal Hp0 or faulty light main signal without written command

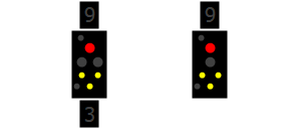

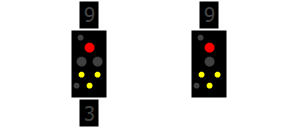

Hp0+Zs7

DCCext

71

Trigger

1G

Mode

4G

Caution signal

Pass signal Hp0 or faulty light main signal without written command. Proceed on sight.

Yellow LEDs on terminal 8, alternative to Sh1 (see signal aspect "Hp0+Sh1")

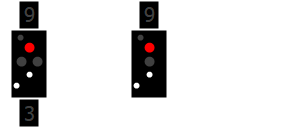

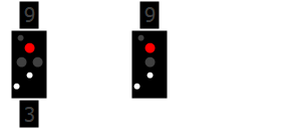

Hp0+Sh1

DCCext

65

Trigger

1R

Mode

3G

Movement forbidden cancelled (for shunting movements)

White LED on terminal 8 alternative to Zs7 (see signal aspect "Hp0+Zs7")

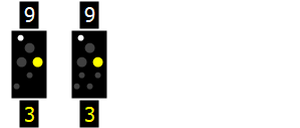

Ks2+Zs3v+Zs3+vBw

DCCext

133

Trigger

-

Expect stop + Distant speed display + Speed display + Shortened braking path

This very rare signal combination can occur if for example a single speed display Zs3 is located between the location and the next main signal (example: Bahnhof Düren).
The braking path distance to the next main signal is shortened.

Ks2+Zs3v+Zs3

DCCext

5

Trigger

-

Expect stop + Distant speed display + Speed display

This very rare signal combination can occur if for example a single speed display Zs3 is located between the location and the next main signal.

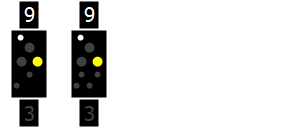

Ks2+Zs3v+vBw

DCCext

134

Trigger

-

Expect stop + Distant speed display + Shortened braking path

This very rare signal combination can occur if for example a single speed display Zs3 is located between the location and the next main signal.
The braking path distance to the next main signal is shortened.

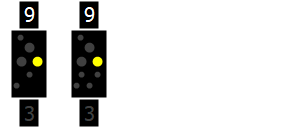

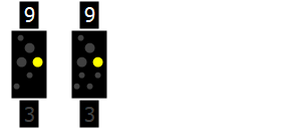

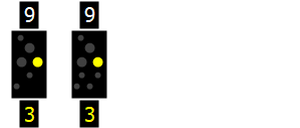

Ks2+Zs3v

DCCext

6

Trigger

-

Expect stop + Distant speed display

Pass at the speed permitted in the schedule, expect stop at the next signal.

This rare signal combination may occur if, for example a single speed display Zs3 is located between the location and the next main signal.

Ks2+Zs3+vBw

DCCext

129

Trigger

1R

Mode

4R

Expect stop + Speed display + Shortened braking path

Pass at the given speed, expect stop at the next signal.
The braking path distance to the next main signal is shortened.

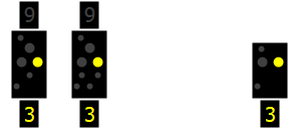

Ks2+Zs3

DCCext

1

Trigger

2R

Mode

3G

Expect stop + Speed display

Pass at the given speed, expect stop at the next signal

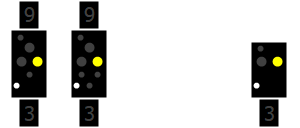

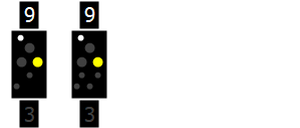

Ks2+Vwh

DCCext

34

Trigger

2R

Mode

4G

Expect stop + Distant signal repeater

Pass at the speed permitted in the schedule, expect stop at the next signal.
Distant signal repeater: the main signal aspect has already been signalled at a previous signal and is repeated here, for example due to obstructed view.

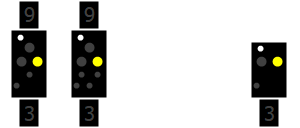

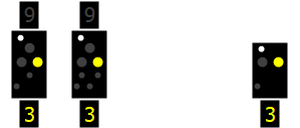

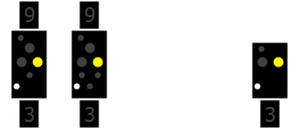

Ks2+vBw

DCCext

130

Trigger

2R

Mode

4R

Expect stop + Shortened braking path

Pass at the speed permitted in the schedule, expect stop at the next signal.
The braking path distance to the next main signal is shortened.

Ks2

DCCext

2

Trigger

2R

Mode

3R

Expect stop

Pass at the speed permitted in the schedule, expect stop at the next signal

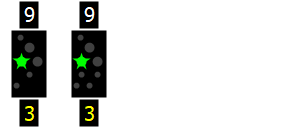

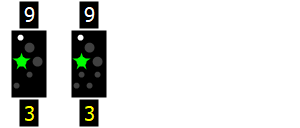

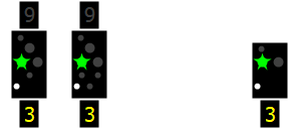

Ks1+Zs3v+Zs3+vBw

DCCext

136

Trigger

1G

Mode

4R

Proceed + Distant speed display + Speed display + Shortened braking path

Proceed at the given speed, expect speed limit at the next signal.
The braking path distance to the next main signal is shortened.

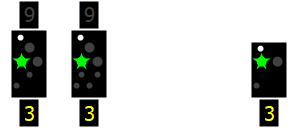

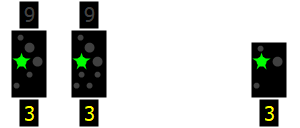

Ks1+Zs3v+Zs3

DCCext

8

Trigger

2G

Mode

3G

Proceed + Distant speed display + Speed display

Proceed at the given speed, expect speed limit at the next signal

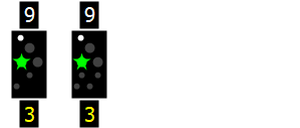

Ks1+Zs3v+Vwh

DCCext

41

Trigger

2G

Mode

4G

Proceed + Distant speed display + Distant signal repeater

Proceed with the speed permitted in the schedule, expect speed limit at the next signal.
Distant signal repeater: the main signal aspect has already been signalled at a previous signal and is repeated here, for example due to obstructed view.

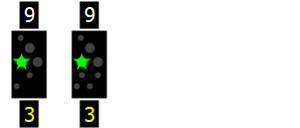

Ks1+Zs3v+vBw

DCCext

137

Trigger

2G

Mode

4R

Proceed + Distant speed indicator + Shortened braking path

Proceed with the speed permitted in the schedule, expect speed limit at the next signal.
The braking path distance to the next main signal is shortened.

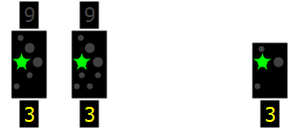

Ks1+Zs3v

DCCext

9

Trigger

2G

Mode

3R

Proceed + Distant speed display

Proceed with the speed permitted in the schedule, expect speed limit at the next signal

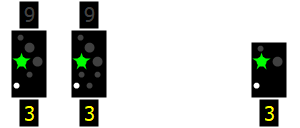

Ks1+Zs3

DCCext

15

Trigger

1G

Mode

3G

Proceed + Speed display

Proceed at given speed

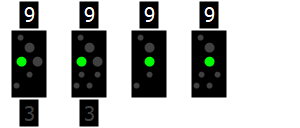

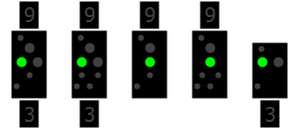

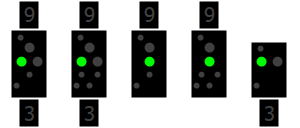

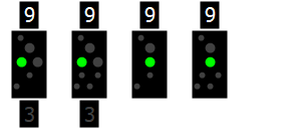

Ks1

DCCext

16

Trigger

1G

Mode

3R

Proceed

Proceed with the speed permitted in the schedule

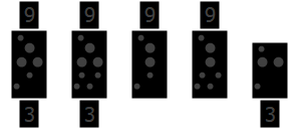

Aus

DCCext

66

Trigger

-

Off
Dark switching

LZB CE2 (partial block mode), or access security signal at the start of routes equipped with ETCS Level 2 without signals (L2oS).

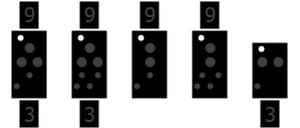

Kennlicht

DCCext

67

Trigger

-

Marker light
A Ks signal can be operationally switched off. The top white marker light shows the traction unit driver that the signal is not faulty.

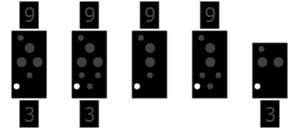

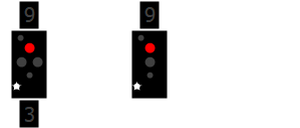

Zusatzlicht

DCCext

68

Trigger

-

Additional light
Only the bottom white marker light is switched on.

With the usual DCC "Single accessory decoder packet format" (DCC Basic Accessory Command), only 4*4=16 signal aspects can be switched, see the columns "Trigger" and "Mode".Theoretically, however, a Ks signal can when fully developed present over 20 signal aspects. For this reason, restrictions must be made for the rare signal aspects with the combination "Ks2+Zs3v" as well as operational shutdowns.

If you wish to use the full scope of functions and really want to switch all possible signal aspects, then you can do this using a DCC control centre which commands the "DCC Extended Accessory Command". See also the column DCCext. The values for DCCext result on the Ks signal from the following system:

0, 65, 69 and 71 stand for Hp0 (red), Hp0+Sh1, Hp0+Zs1 and Hp0+Zs7
66, 67 as well as 68 stand for "complete dark switching", "only the top marker light" and "only the bottom marker light"
2, 6, 9 and 16 stand for Ks2 (yellow), Ks2+Zs3v (yellow with distant speed display), Ks1+Zs3v (green flashing with distant speed display) and Ks1 (green continuous light)
Subtract 1 in order to switch on a speed limit Zs3 as well: 1, 5, 8 and 15 stand for Ks2+Zs3, Ks2+Zs3v+Zs3, Ks1+Zs3v+Zs3 and Ks1+Zs3
If applicable, add 32 to switch on the bottom white additional light for the distant signal repeater as well: 2+32=34 ... "Ks2 + distant signal repeater"
If applicable, add 128 to switch on the top white additional light for the shortened braking path as well: 2+128=130 ... "Ks2 + Shortened braking path"

Mode

4G
