Ks Vorsignal (DB)

Signal-ID: 220 (hex 0xDC)

Using this signal configuration, the following signals can for example be operated:

Ks distant signal with optional additional signal Zs3v

This signal configuration is similar to the "Ks main signal (DB)" with the Signal-ID 219 (0xDB), but is limited to the relevant distant signal aspects and features simplified assignment at the terminals.

The Z21 signal DECODER can also optionally control the additional signal and additional lights for Zs3v, shortened braking path and distant signal repeater.

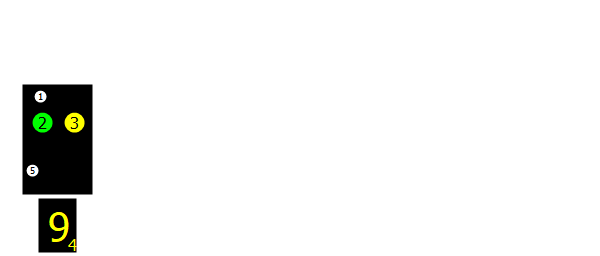

Terminal assignment

1 - White LED

Additional light (optional) shortened braking path (“vBw”)

2 - Green LED

Signal light Ks1

3 - Yellow LED

Signal light Ks2

4 - Yellow LED

Zs3v distant speed display (optional)

5 - White LED

Additional light (optional) distant signal repeater (“Vwh”)

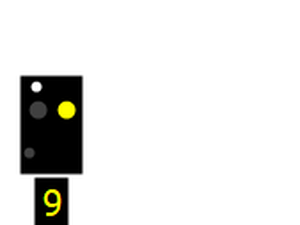

Signal aspects

Ks2+Zs3v+vBw

DCCext

134

Trigger

1R

Mode

4R

Expect stop + Distant speed display + Shortened braking path

This very rare signal combination can occur if for example a single speed display Zs3 is located between the location and the next main signal.
The braking path distance to the next main signal is shortened.

Ks2+Zs3v

DCCext

6

Trigger

2R

Mode

3G

Expect stop + Distant speed display

Pass at the speed permitted in the schedule, expect stop at the next signal.

This very rare signal combination can occur if for example a single speed display Zs3 is located between the location and the next main signal.

Ks2+Vwh

DCCext

34

Trigger

2R

Mode

4G

Expect stop + Distant signal repeater

Expect stop at the next signal.
Distant signal repeater: the aspect of the main signal was already signalled at a previous signal and is repeated here, for example due to obstructed view.

Ks2+vBw

DCCext

130

Trigger

2R

Mode

4R

Expect stop + Shortened braking path

Expect stop at the next signal.
The braking path distance to the next main signal is shortened.

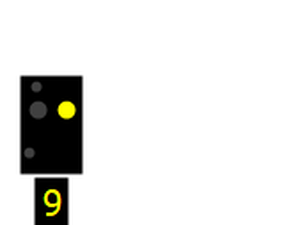

Ks2

DCCext

2

Trigger

2R

Mode

3R

Expect stop

Expect stop at the next signal.

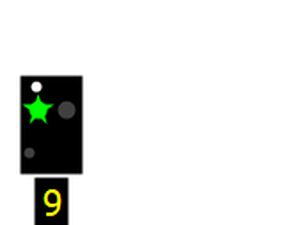

Ks1+Zs3v+Vwh

DCCext

41

Trigger

2G

Mode

4G

Proceed + Distant speed display + Distant signal repeater

Expect proceed with speed limit at the next signal.
Distant signal repeater: the main signal aspect has already been signalled at a previous signal and is repeated here, for example due to obstructed view.

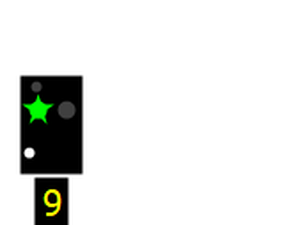

Ks1+Zs3v+vBw

DCCext

137

Trigger

2G

Mode

4R

Proceed + Distant speed indicator + Shortened braking path

Expect proceed with speed limit at the next signal.
The braking path distance to the next main signal is shortened.

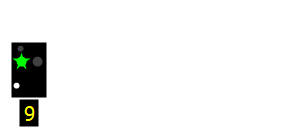

Ks1+Zs3v

DCCext

9

Trigger

2G

Mode

3R

Proceed + Distant speed display

Expect proceed with speed limit at the next signal.

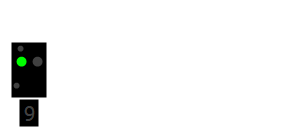

Ks1

DCCext

16

Trigger

1G

Mode

3R

Proceed

Expect proceed at the next signal.

Aus

DCCext

66

Trigger

1G

Mode

3G

Off
Dark switching

Kennlicht

DCCext

67

Trigger

1G

Mode

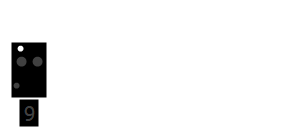

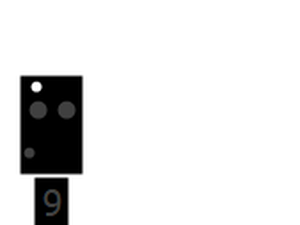

4R

Marker light
A Ks signal can be operationally switched off. The top white marker light shows the traction unit driver that the signal is not faulty.

Zusatzlicht

DCCext

68

Trigger

1G

Mode

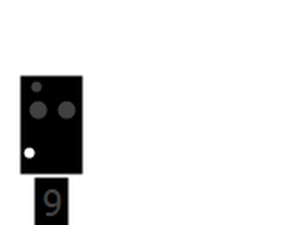

4G

Additional light
Only the bottom white marker light is switched on.

With this signal configuration, rare signal aspects such as "Ks2+Zs3v" and operational shutdowns can also be switched with the standard

"DCC Basic Accessory Command".

However, it is also possible to switched the signal aspects - as for the "Ks main signal (DB)" with the signal-ID 219 (0xDB) - with the "DCC Extended Accessory Command", see also column DCCext.

The values for DCCext result on the Ks signal from the following system:

66, 67 as well as 68 stand for "complete dark switching", "only the top marker light" and "only the bottom marker light".
2, 6, 9 and 16 stand for Ks2 (yellow), Ks2+Zs3v (yellow with distant speed display), Ks1+Zs3v (green flashing with distant speed display) and Ks1 (green continuous light).
If applicable, add 32 to switch on the bottom white additional light for the distant signal repeater as well: 2+32=34 ... "Ks2 + distant signal repeater".
If applicable, add 128 to switch on the top white additional light for the shortened braking path as well: 2+128=130 ... "Ks2 + Shortened braking path".
