Rangiersignal (DB)
Signal-ID: 214 (hex: 0xD6)
Using this signal configuration, the following signals can for example be operated:
- Shunting signal

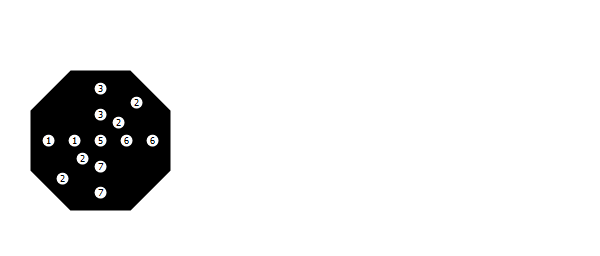

Terminal assignment
1 - White LED
Ra6
2 - White LED
Ra7
3 - White LED
Ra8
4 - White LED
Ra9 (optional if a separate control line for Ra9 exists on the signal)
5 - White LED
Common centre light point top for Ra6 to Ra9
6 - White LED
Common light points for Ra6 and Ra9
7 - White LED
Common light points for Ra8 and Ra9
Signal aspects

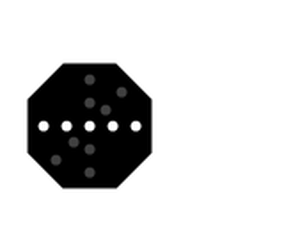

Ra6 Halt
DCCext
6
Trigger
1R
Ra6 Stop
Stop! Shunting away forbidden

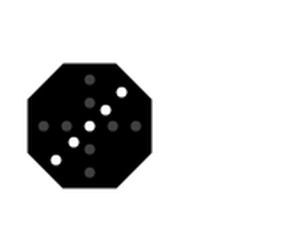

Ra7 Langsam abdrücken
DCCext
7
Trigger
1G
Ra7 Slowly shunting away
Slowly shunt away car over hump

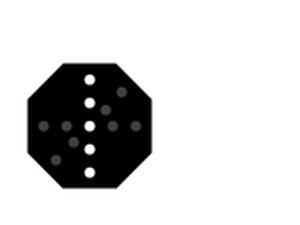

Ra8 Mäßig schnell abdrücken
DCCext
8
Trigger
2G
Ra8 "Smartly" shunting away
"Fast" shunt away car over hump

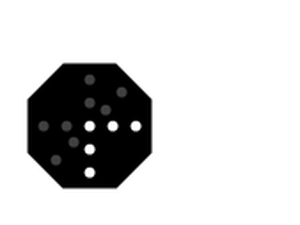

Ra9 Zurückziehen
DCCext
9
Trigger
3G
Ra9 Pull back
Move away opposite to the hump direction

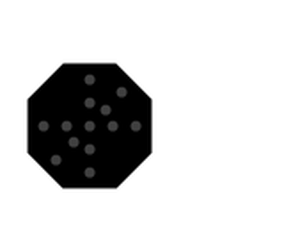

Aus
DCCext
66
Trigger
2R
Off
Dark switching
