Schutzsignal Ep 3-4 (ÖBB)
Signal-ID: 165 (hex: 0xA5)
Using this signal configuration, the following signals can for example be operated:
- Protection signal Epoch 3
- Protection signal Epoch 4

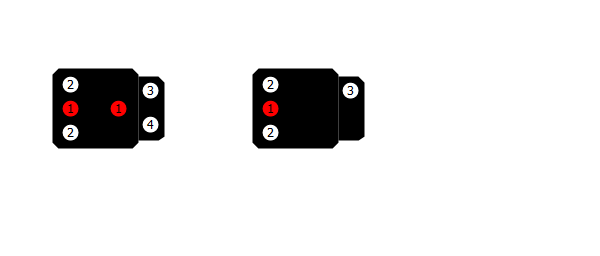

Terminal assignment
1 - Red LED
Movement forbidden
2 - White LED
Movement forbidden cancelled
3 - White LED
Substitution signal or 29b alternate flash (optional)
4 - White LED
29b alternate flash second light (if available)
Signal aspects

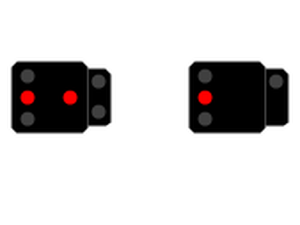

Halt
DCCext
0
Trigger
1R
Stop
Movement forbidden

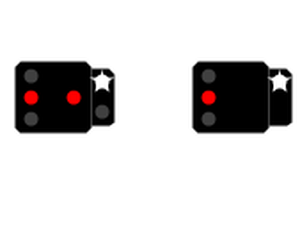

29b/Ersatzsignal
DCCext
69
Trigger
2R
29b/Substitution signal
29b = "Passing permitted"

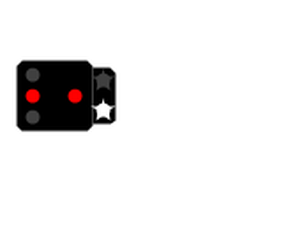

29b blinkt
DCCext
-
Trigger
-
29b flashing
(Used internally in the decoder)

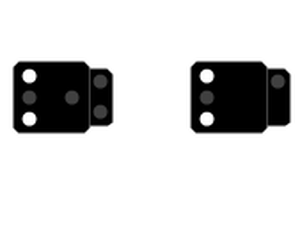

Fahrverbot aufgehoben
DCCext
68
Trigger
1G
Movement forbidden cancelled
