Schutzsignal Ep 4-6 (ÖBB)
Signal-ID: 164 (hex: 0xA4)
Using this signal configuration, the following signals can for example be operated:
- Protection signal Epoch 5
- Protection signal Epoch 4

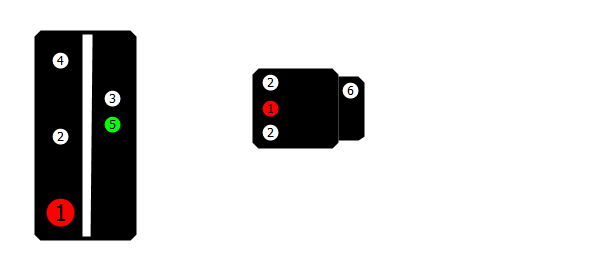

Terminal assignment
1 - Red LED
2 - White LED
Common white light for movement or shunting forbidden cancelled
3 - White LED
Shunting forbidden cancelled (optional)
4 - White LED
Common white light for substitution signal and movement forbidden cancelled
5 - Green LED
Departure (if available)
6 - White/Red LED
Separate white light for substitution signal, alternative red light for caution signal
Signal aspects

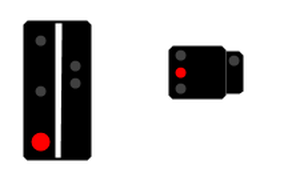

Halt
DCCext
0
Trigger
1R
Stop
Stop for train and shunting movements.

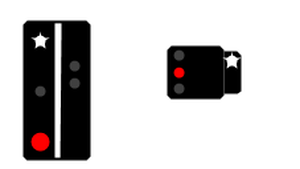

Ersatzsignal
DCCext
69
Trigger
2R
Substitution signal
Permits trains to pass the signal at maximum 40 km/h.
Alternatively, instead of the white light on terminal 6, a red light can be used in order to present the flashing caution signal (like substitution signal, but proceed on sight).
Fahrverbot aufgehoben
DCCext
68
Trigger
1G
Movement forbidden cancelled

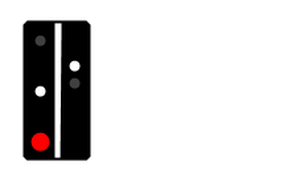

Verschubverbot aufgehoben
DCCext
65
Trigger
2G
Shunting forbidden cancelled

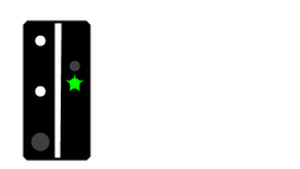

Abfahrt
DCCext
48
Trigger
4G
Departure
Departure allowed.
