Signalnachahmer (ÖBB)
Signal-ID: 167 (hex: 0xA7)
Using this signal configuration, the following signals can for example be operated:
- Signal emulator with tubular lamps
- Signal emulator construction 1954 with 29b

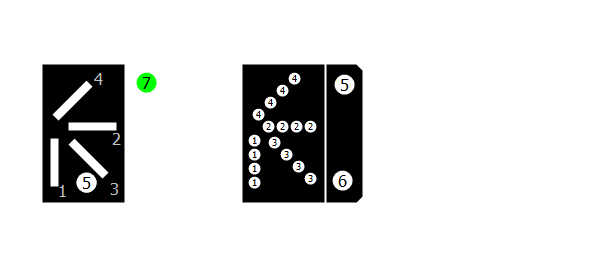

Terminal assignment
1 - White LED
2 - White LED
Stop
3 - White LED
Clear with speed limit
4 - White LED
Clear
5 - White LED
Substitution signal or 29b alternate flash (optional)
6 - White LED
29b alternate flash second light (if available)
7 - Green LED
Departure (if available)
Signal aspects

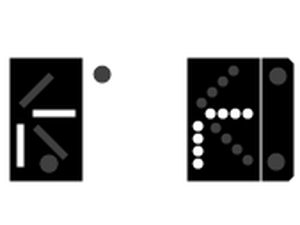

Halt
DCCext
0
Trigger
1R
Stop
Main signal indicates stop.

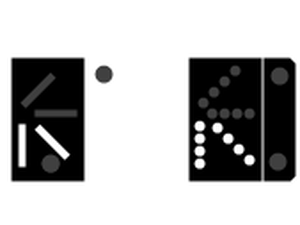

Ersatzsignal/29b
DCCext
69
Trigger
4R
Substitution signal/29b
Announcement of substitution signal or 29b
29b = "Passing permitted"

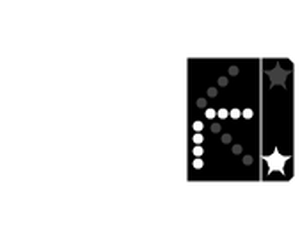

29b blinkt
DCCext
-
Trigger
-
29b flashing
(used internally in the decoder)

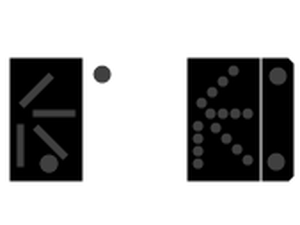

Frei mit Geschwindigkeitsbeschränkung
DCCext
4
Trigger
2G
Clear with speed limit
Main signal indicates clear with speed limit.
Frei mit Geschwindigkeitsbeschränkung
DCCext
6
Trigger
3G
Clear with speed limit
(Identical with signal aspect number 4)

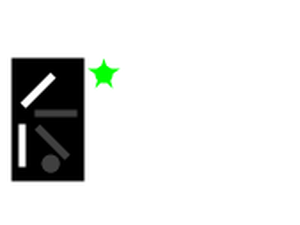

Abfahrt
DCCext
48
Trigger
4G
Departure
Main signal indicates departure permitted.

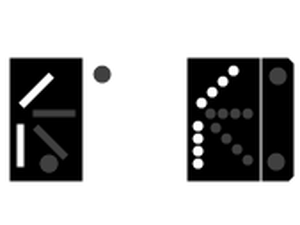

Frei
DCCext
16
Trigger
1G
Clear
Main signal indicates clear.

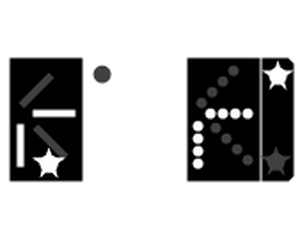

Aus
DCCext
66
Trigger
2R
Off
Dark switching
