Sperrsignal (DB)
Signal-ID: 213 (hex: 0xD5)
Using this signal configuration, the following signals can for example be operated:
- Light stop signal
- Semaphore stop signal
Semaphore signals can be connected if they fulfil the following conditions:
- Drives switched off at end of travel
- Current consumption < 400 mA per drive
- Common anode
- One control line per signal aspect

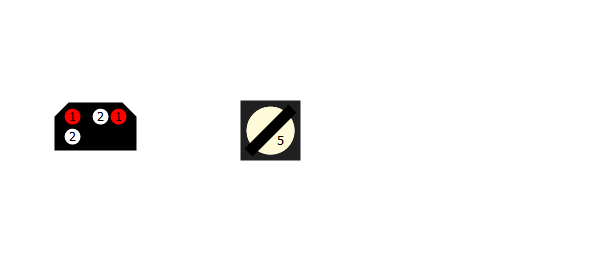

Terminal assignment
1 - Red LED
Light signal: Stop
2 - White LED
Light signal: Movement forbidden cancelled
3 - Coil
Connection for semaphore signal “Stop”
4 - Coil
Connection for semaphore signal “Movement forbidden cancelled”
5 - White LED
Connection for semaphore signal Lighting
8 - Reserved
Signal aspects

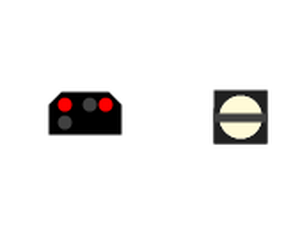

Sh0/Hp0
DCCext
0
Trigger
1R
Stop! Movement forbidden

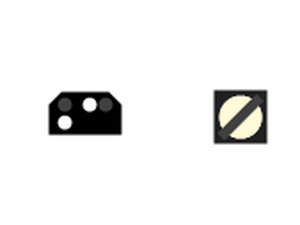

Sh1
DCCext
65
Trigger
1G
Movement forbidden cancelled

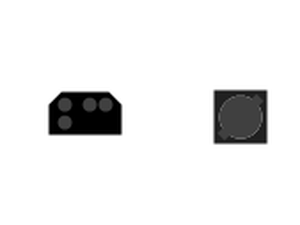

Aus
DCCext
66
Trigger
2R
Off
Dark switching
