System L Komb. Signal klein (SBB)

Signal-ID: 204 (hex: 0xCC)

Using this signal configuration, the following signals can for example be operated:

Stop FB1 FB3 Warning
Stop FB1 Warning FB1* FB2* FB3*
Stop FB1 Warning FB1* FB2* FB3* FB5*
Stop FB1 FB3 Warning FB1* FB2* FB3* FB5*
Stop FB1 FB2 Warning FB1* FB2* FB3* FB5*

Combined signals can present both distant signal aspects and main signal aspects, and are suitable for use in short block sections.
The wide variety of equipment variants with different lamps are hard to completely reproduce in models.
In spite of this, the Z21 signal DECODER attempts to depict the most important combined signals. Through clever wiring, a high number of usage possibilities are made available.

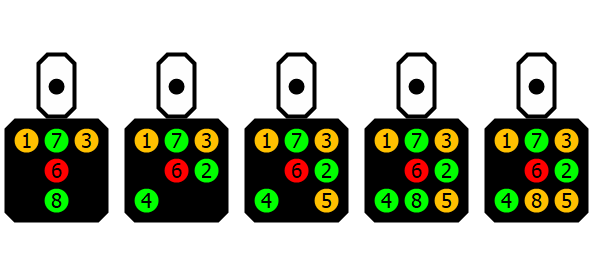

Terminal assignment

1 - Orange LED

Warning FB2* FB3*

2 - Green LED

FB1* FB2* FB3* FB5*

3 - Orange LED

Warning

4 - Green LED

FB1* FB3* FB5*

5 - Orange LED

FB5*

6 - Red LED

Stop

7 - Green LED

FB1 FB2 FB3

8 - Green/Orange LED

FB3/FB2 (alternative)

Signal aspects

Halt

DCCext

0

Trigger

1R

Mode

3R

Stop

Hilfssignal N

DCCext

68

Trigger

1R

Mode

3G

Auxiliary signal N
Permission to pass by signal

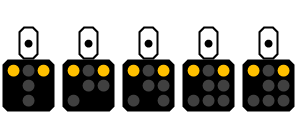

Warnung

DCCext

1

Trigger

1R

Mode

4G

Warning
The associated main signal indicates stop

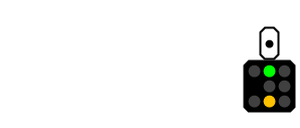

FB2

DCCext

4

Trigger

2G

Mode

3R

Velocity 40 km/h

(alternative wiring with orange LED on terminal 8, see FB3 bottom)

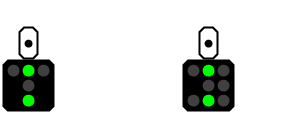

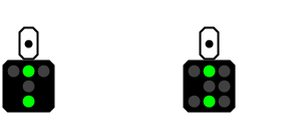

FB3

DCCext

6

Trigger

2G

Mode

3G

Velocity 60 km/h

(alternative wiring with green LED on terminal 8, see FB2 top)

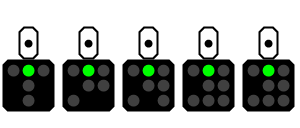

FB1

DCCext

16

Trigger

1G

Mode

3R

Clear to proceed

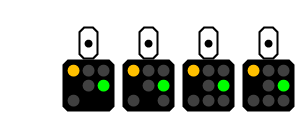

FB2*

DCCext

132

Trigger

2G

Mode

4R

Speed announcement 40 km/h

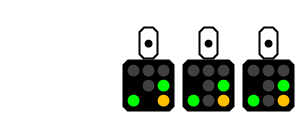

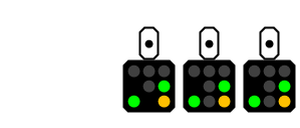

FB3*

DCCext

134

Trigger

2G

Mode

4G

Speed announcement 60 km/h

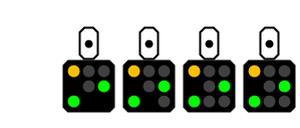

FB5*

DCCext

137

Trigger

1G

Mode

4R

Speed announcement 90 km/h

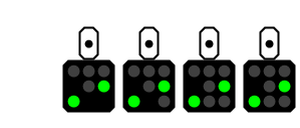

FB1*

DCCext

144

Trigger

1G

Mode

4G

Announcement Clear to proceed

Aus

DCCext

66

Trigger

2R

Mode

3G

Off
Dark switching

The white additional board with a black border and black dot marks these signals as main signals which can indicate stop. This even allows differentiation even in case of distant signal faults.

In case of a switched-off signal with this additional board, the engine driver must acknowledge the signal aspect stop.

In case of a switched off combined signal without this additional board, on the other hand, the engine driver has to acknowledge the distant signal aspect warning.
