System L Komb. Signal groß (SBB)

Signal-ID: 205 (hex: 0xCD)

Using this signal configuration, the following signals can for example be operated:

  • Stop FB1 FB2 FB3 FB5 Warning
  • Stop FB1 FB2 FB3 FB5 Warning FB2*
  • Stop FB1 FB2 FB3 Warning FB1* FB2* FB3*

Combined signals can present both distant signal aspects and main signal aspects, and are suitable for use in short block sections. The wide variety of equipment variants with different lamps are hard to completely reproduce in models.
In spite of this, the Z21 signal DECODER attempts to depict the most important combined signals. Through clever wiring, a high number of usage possibilities are made available.

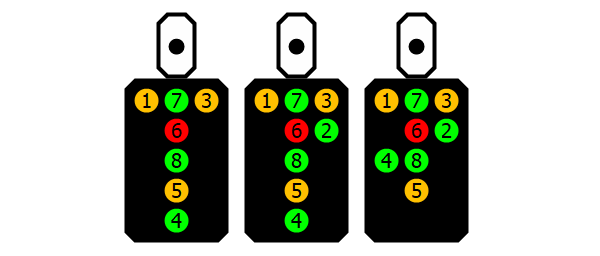

Terminal assignment

1 - Orange LED
Warning FB2* FB3*
2 - Green LED
FB1* FB2*
3 - Orange LED
Warning
4 - Green LED
FB1* FB3*. FB5 on green LED right at the bottom (alternative)
5 - Orange LED
FB2
6 - Red LED
Stop
7 - Green LED
FB1 FB2 FB3 FB5
8 - Green LED
FB3 FB5

Signal aspects

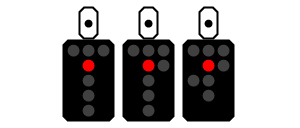

Halt

DCCext
0
Trigger
1R
Mode
3R

Stop

Hilfssignal N

DCCext
68
Trigger
1R
Mode
3G

Auxiliary signal N
Permission to pass by signal

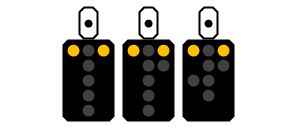

Warnung

DCCext
1
Trigger
1R
Mode
4G

Warning
The associated main signal indicates stop

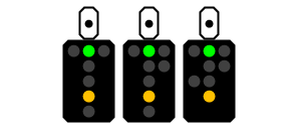

FB2

DCCext
4
Trigger
2G
Mode
3R

Velocity 40 km/h

FB3

DCCext
6
Trigger
2G
Mode
3G

Velocity 60 km/h

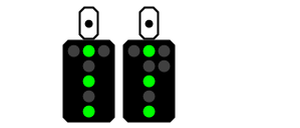

FB5

DCCext
9
Trigger
1G
Mode
3G

Velocity 90 km/h

(alternative wiring with bottom green LED on terminal 4, instead of FB1* FB3*)

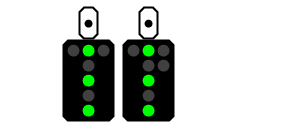

FB1

DCCext
16
Trigger
1G
Mode
3R

Clear to proceed

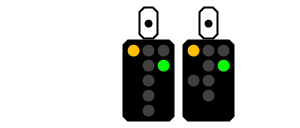

FB2*

DCCext
132
Trigger
2G
Mode
4R

Speed announcement 40 km/h

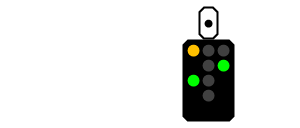

FB3*

DCCext
134
Trigger
2G
Mode
4G

Speed announcement 60 km/h

(alternative wiring on terminal 4, instead of FB5)

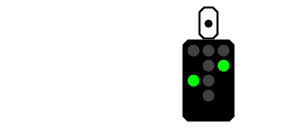

FB1*

DCCext
144
Trigger
1G
Mode
4G

Announcement Clear to proceed

(alternative wiring on terminal 4, instead of FB5)

Aus

DCCext
66
Trigger
2R
Mode
3G

Off
Dark switching

The white additional board with a black border and black dot marks these signals as main signals which can indicate stop. This even allows differentiation even in case of distant signal faults.

In case of a switched-off signal with this additional board, the engine driver must acknowledge the signal aspect stop.

In case of a switched off combined signal without this additional board, on the other hand, the engine driver has to acknowledge the distant signal aspect warning.

Sorted according to mode

Halt

Trigger
1R
Mode
3R

FB1

Trigger
1G
Mode
3R

FB2

Trigger
2G
Mode
3R

Hilfssignal N

Trigger
1R
Mode
3G

FB5

Trigger
1G
Mode
3G

Aus

Trigger
2R
Mode
3G

FB3

Trigger
2G
Mode
3G

FB2*

Trigger
2G
Mode
4R

Warnung

Trigger
1R
Mode
4G

FB1*

Trigger
1G
Mode
4G

FB3*

Trigger
2G
Mode
4G
