System L Vorsignal (SBB)

Signal-ID: 193 (hex: 0xC1)

Using this signal configuration, the following signals can for example be operated:

  • Distant signal (platform roof): Warning FB2*
  • Distant signal (obsolete): Warning, announcement clear to proceed
  • Distant signal (standard): Warning FB1* FB2* FB3*
  • Distant signal (completely equipped): Warning FB1* FB2* FB3* FB5*

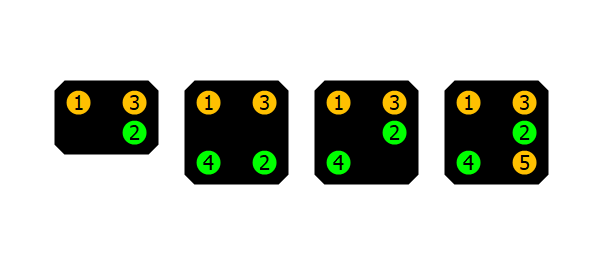

Terminal assignment

1 - Orange LED
Warning FB2* FB3*
2 - Green LED
FB1* FB2* FB3* FB5*
3 - Orange LED
Warning
4 - Green LED
FB1* FB3* FB5*
5 - Orange LED
FB5* (if available)

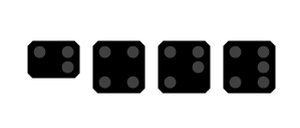

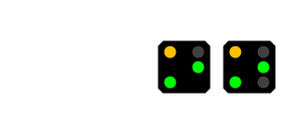

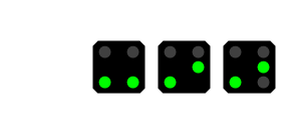

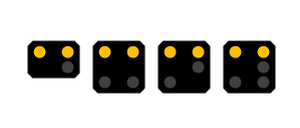

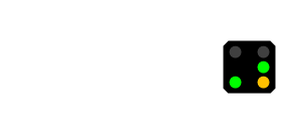

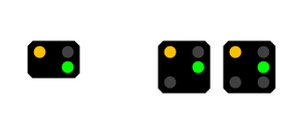

Signal aspects

Warnung

DCCext
1
Trigger
1R

Warning
The associated main signal indicates stop.

FB2*

DCCext
4
Trigger
2G

Speed announcement 40 km/h

FB3*

DCCext
6
Trigger
3G

Speed announcement 60 km/h

FB5*

DCCext
9
Trigger
4G

Speed announcement 90 km/h

FB1*

DCCext
16
Trigger
1G

Announcement Clear to proceed

Aus

DCCext
66
Trigger
2R

Off
Dark switching

A distant signal under a main signal indicating stop should according to the regulations either display a warning or remain dark.
If this main signal indicates FB6 short proceed or occupied track, then the distant signal at the same location must always remain dark.
