System N Hauptsignal (SBB)
Signal-ID: 194 (hex: 0xC2)
Using this signal configuration, the following signals can for example be operated:
- Main signal
- Main signal with speed
- Main signal with advance warning
- Main signal with occupied signal

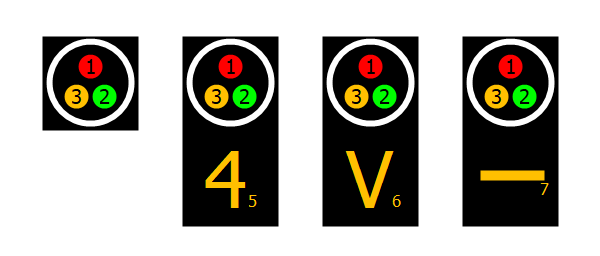

Terminal assignment
1 - Red LED
Stop
2 - Green LED
Proceed
3 - Orange LED
Warning
4 - Orange LED
Common terminal for additional signals (optional)
5 - Orange LED
Separate terminal for additional signal speed (alternative to terminal 4, optional)
6 - Orange LED
Separate terminal for additional signal advance warning (alternative to terminal 4, optional)
7 - Orange LED
Separate terminal for additional signal occupied signal (alternative to terminal 4, optional)
Signal aspects

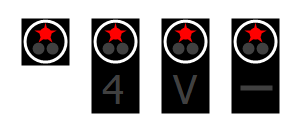

Halt
DCCext
0
Trigger
1R
Mode
3R
Stop
Hilfssignal N
DCCext
68
Trigger
1R
Mode
3G
Auxiliary signal N
Permission to pass by signal

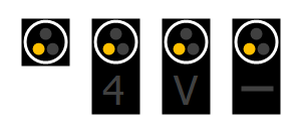

Warnung
DCCext
1
Trigger
2G
Mode
3R
Warning
The next signal indicates "Stop"

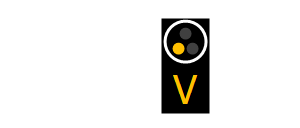

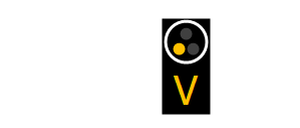

Vorwarnung
DCCext
71
Trigger
2R
Mode
3G
Advance warning
Reduction in speed so that it is possible to stop prior to the next but one
signal.
Shortened distance between the next and the next but one signal.

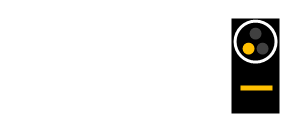

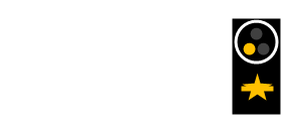

Kurze Fahrt
DCCext
3
Trigger
2R
Mode
4R
Short distance proceed
The next main signal, obstruction
signal or track closure indicates Stop and the distance is shortened.
The additional signal flashes.

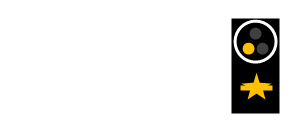

Besetztes Gleis
DCCext
36
Trigger
2R
Mode
4G
Occupied track
An obstruction is to be expected on the following track section.

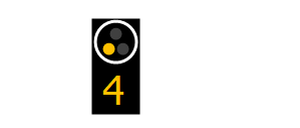

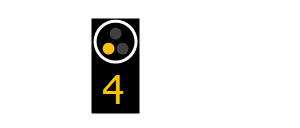

G. Ankündigung
DCCext
4
Trigger
2G
Mode
3G
Speed announcement
From the next signal, the indicated maximum speed applies.

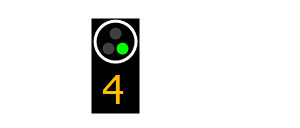

G. Ausführung
DCCext
14
Trigger
1G
Mode
3G
Velocity
From this signal, the indicated maximum speed applies.
Freie Fahrt
DCCext
16
Trigger
1G
Mode
3R
Clear to proceed
Proceed with the maximum speed stated in the
route table.

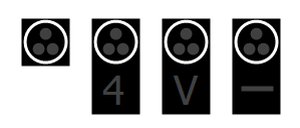

Aus
DCCext
66
Trigger
2R
Mode
3R
Off
Dark switching
A dark main signal means stop.
Sorted according to mode
Halt
Trigger
1R
Mode
3R
Freie Fahrt
Trigger
1G
Mode
3R
Aus
Trigger
2R
Mode
3R
Warnung
Trigger
2G
Mode
3R
Hilfssignal N
Trigger
1R
Mode
3G
G. Ausführung
Trigger
1G
Mode
3G
Vorwarnung
Trigger
2R
Mode
3G
G. Ankündigung
Trigger
2G
Mode
3G
Kurze Fahrt
Trigger
2R
Mode
4R
Besetztes Gleis
Trigger
2R
Mode
4G
