System N Vorsignal (SBB)
Signal-ID: 195 (hex: 0xC3)
Using this signal configuration, the following signals can for example be operated:
- Distant signal
- Distant signal with speed

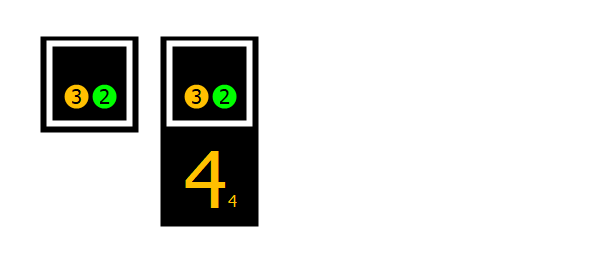

Terminal assignment
2 - Green LED
Proceed
3 - Orange LED
Warning
4 - Orange LED
Additional signal speed (optional)
Signal aspects

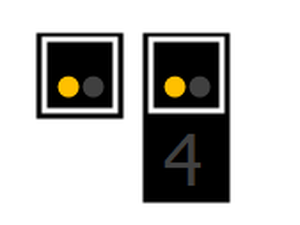

Warnung
DCCext
1
Trigger
1R
Warning
The next signal indicates "Stop"

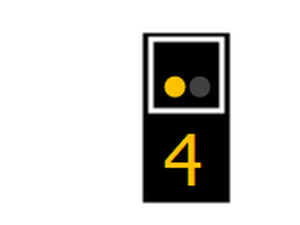

G. Ankündigung
DCCext
4
Trigger
2G
Speed announcement
From the next signal, the indicated maximum speed applies.

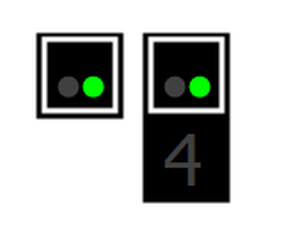

Freie Fahrt
DCCext
16
Trigger
1G
Clear to proceed
The next signal indicates "Clear to proceed", "Speed announcement" or "(Advance)
warning".

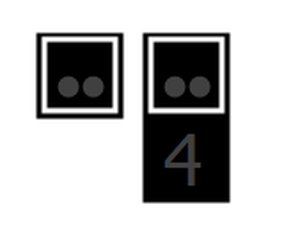

Aus
DCCext
66
Trigger
2R
Off
Dark switching
A dark distant signal means warning.
