Verschubsignal (ÖBB)
Signal-ID: 166 (hex: 0xA6)
Using this signal configuration, the following signals can for example be operated:
- Dwarf signal
- Shunting signal construction from 1954
- Shunting signal construction from 1954 with proceed signal
- Shunting signal construction from 1934

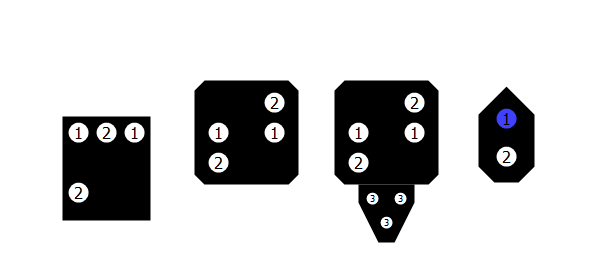

Terminal assignment
1 - White/Blue LED
Shunting forbidden, Blue light for very old design
2 - White LED
Shunting forbidden cancelled
3 - White LED
Planned journey (optional)
Signal aspects
Verschubverbot
DCCext
0
Trigger
1R
Shunting forbidden

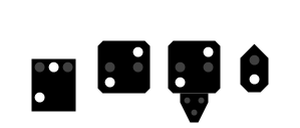

Verschubverbot aufgehoben
DCCext
65
Trigger
1G
Shunting forbidden cancelled

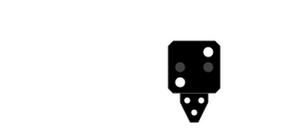

Fahrtauftrag
DCCext
68
Trigger
2G
Planned journey

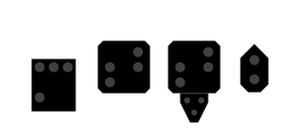

Aus
DCCext
66
Trigger
2R
Off
Dark switching
