Vorsignal (ÖBB)
Signal-ID: 161 (hex: 0xA1)
Using this signal configuration, the following signals can for example be operated:
- Distant signal construction from 1954
- Distant signal construction from 1934

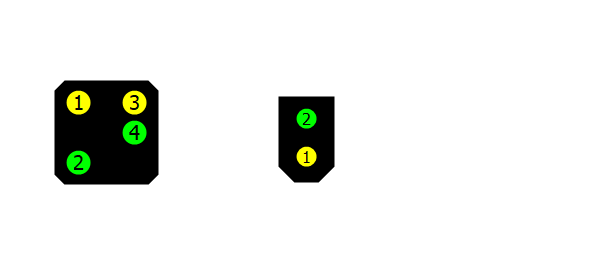

Terminal assignment
1 - Yellow LED
Yellow for “Caution”, “Clear with 40 km/h” and “Clear with 60 km/h”
2 - Green LED
Green for “Clear”, “Clear with 40 km/h” and “Clear with 60 km/h”
3 - Yellow LED
Second yellow for “Caution” and “Clear with 40 km/h”
4 - Green LED
Second green for “Clear” and “Clear with 60 km/h”
Signal aspects

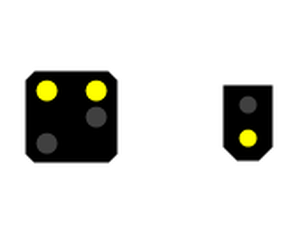

Vorsicht
DCCext
1
Trigger
1R
Caution
The associated main signal indicates stop.

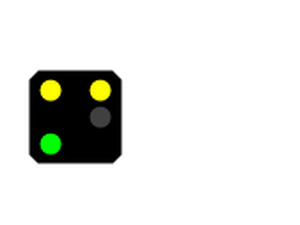

Frei mit 40 km/h
DCCext
4
Trigger
2G
Clear with 40 km/h
The associated main signal indicates clear with 40 km/h.

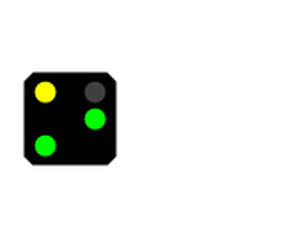

Frei mit 60 km/h
DCCext
6
Trigger
3G
Clear with 60 km/h
The associated main signal indicates clear with 60 km/h.

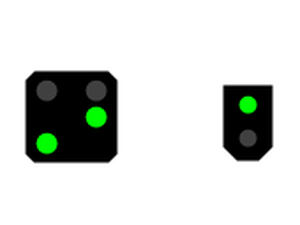

Frei
DCCext
16
Trigger
1G
Clear
The associated main signal indicates clear.

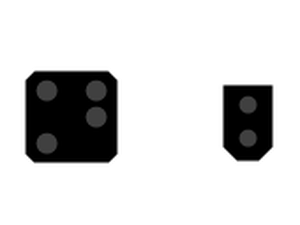

Aus
DCCext
66
Trigger
2R
Off
Dark switching
A distant signal mounted at a location of another main or protection signal (location signal) should be switched dark if this location signal is not indicating Clear.
