Zugpersonalsignal (DB)
Signal-ID: 216 (hex: 0xD8)
Using this signal configuration, the following signals can for example be operated:
- Brake test
- Departure signal

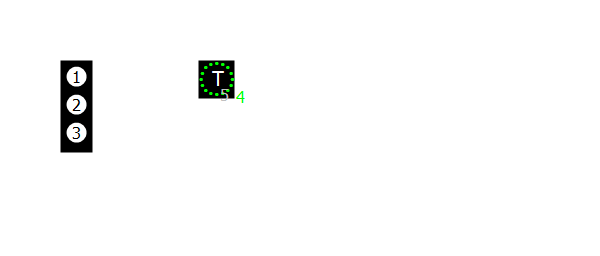

Terminal assignment
1 - White LED
Brake test top light
2 - White LED
Brake test centre light
3 - White LED
Brake test bottom light
4 - Green LED
Departure (green ring)
5 - White LED
Close doors (white “T” or horizontal light strip)
Signal aspects

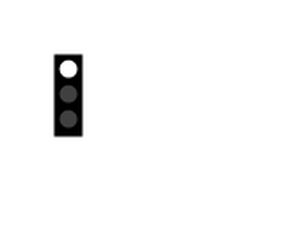

Zp6 Bremse anlegen
DCCext
6
Trigger
1R
Zp6 Apply brake

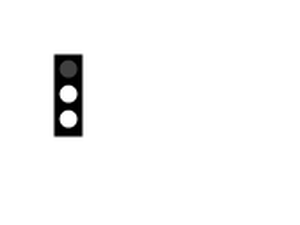

Zp7 Bremse lösen
DCCext
7
Trigger
2R
Zp7 Release brake

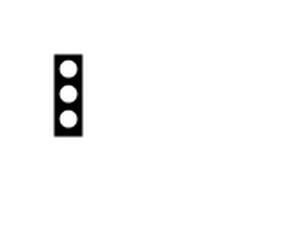

Zp8 Bremsprobe in Ordnung
DCCext
8
Trigger
3R
Zp8 Brake test OK
Zp9 Abfahren
DCCext
9
Trigger
1G
Zp9 Departure
Departure
without brake test lights

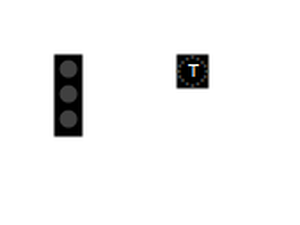

Zp10 Türen schließen
DCCext
10
Trigger
2G
Zp10 Close doors
Door closing order
without brake test lights
Zp9+Zp8
DCCext
17
Trigger
3G
Zp9+Zp8 Departure with brake test OK

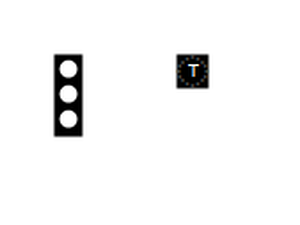

Zp10+Zp8
DCCext
18
Trigger
4G
Zp10+Zp8 Close doors with brake test OK
Door closing order with brake test OK
Aus
DCCext
66
Trigger
4R
Off
Dark switching
