Zwergsignal (SBB)
Signal-ID: 199 (hex: 0xC7)
Using this signal configuration, the following signals can for example be operated:
- Dwarf signal
- Dwarf signal with departure permission
- Mini-main signal with dwarf signal
- Mini-main signal

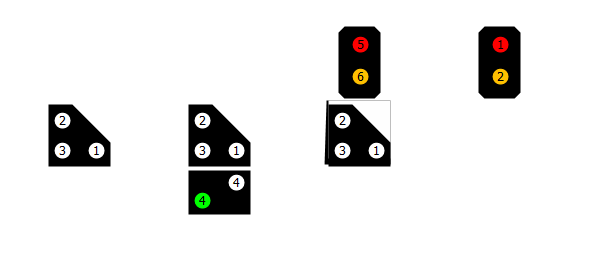

Terminal assignment
1 - White/Red LED
Dwarf signal: “Stop” + “Proceed with caution”. Mini-main signal: Stop (optional)
2 - White/Orange LED
Dwarf signal: “Proceed” + “Proceed with caution”. Mini-main signal: Warning (optional)
3 - White LED
Dwarf signal: “Stop” + “Proceed”
4 - Green+White LED
Departure permission
5 - Red LED
Mini-main signal: Stop (alternative)
6 - Orange LED
Mini-main signal: Warning (alternative)
Signal aspects
Halt
DCCext
0
Trigger
1R
Stop

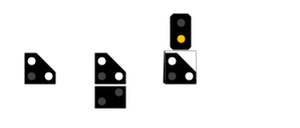

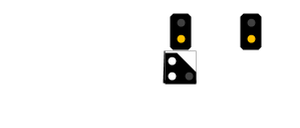

Warnung
DCCext
1
Trigger
2R
Warning

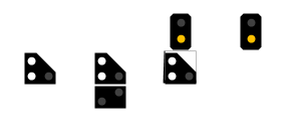

Fahrt mit Vorsicht
DCCext
71
Trigger
2G
Proceed with caution
Start or continue to proceed. Expect an
obstruction.

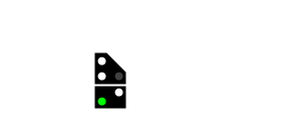

Abfahrerlaubnis
DCCext
48
Trigger
3G
Departure permission
Issue of departure permission
Fahrt
DCCext
4
Trigger
1G
Proceed
Start or continue to proceed

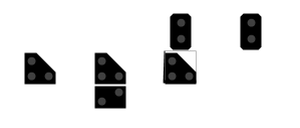

Aus
DCCext
66
Trigger
3R
Off
Dark switching
